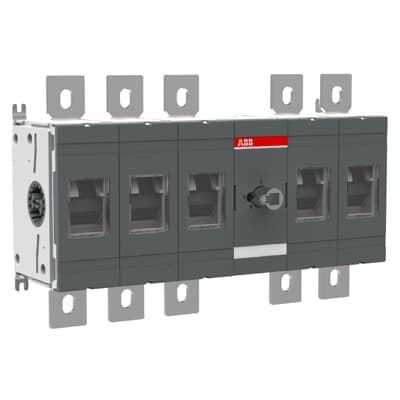

Product Model
OT630E32
Selling Points
- 1Handles up to 630 A at 380-415 V, 500 V, 690 V, and 1000 V.
- 2Meets IEC/EN 60664-1 standards with a rated insulation voltage of 1000 V.
- 3Base-mounted with front operation, offering flexible installation options.
- 4Withstands short-circuit currents of up to 80 kA at 690 V for 1 s.
- 5Compliant with EU Directive 2011/65/EU and Amendment 2015/863, ensuring environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Environmental Information | 1SCC301232D0201 |
Pollution Degree | 3 | Product Net Width | 396 mm |
Product Net Height | 250 mm | Product Net Depth / Length | 140 mm |
Product Net Weight | 9.4 kg | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 630 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 630 A | Degree of Protection | Front IP00 |
Distance Between Phases | Standard | Handle Type | Handle and shaft not included |
Lock Type | No | Mechanical Durability | 10000 |
Mounting Type | Base mounting | Number of Poles | 5P |
Operating Mode | Front operated | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 25 W |
Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A (1000 V) 630 A | Rated Operational Current AC-21B (Ie) | (690 V) 630 A |
Rated Operational Current DC-21B (Ie) | (800 V) 630 A | Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-Circuit Making Capacity (Icm) | (690 V) 80 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
Special Functions | No | Standards | IEC 60947-3 |
Switches Operating Mechanism | Mechanism Between the Poles | Terminal Type | Lug terminals |
Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA103728R1001 |
Specifications may be subject to change without notice
