Product Model

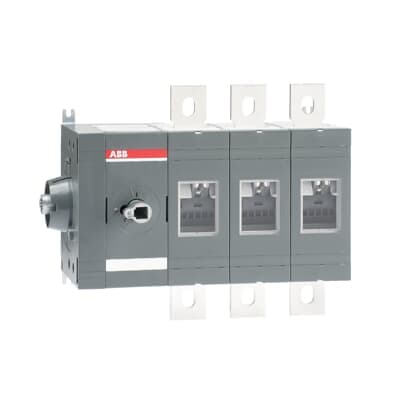

OT630ES03
Selling Points
- 1High performance and reliability in low voltage applications.
- 2Compliant with EU directives (RoHS, REACH, CE).
- 33-pole, side-operated switch-disconnector with terminal bolt kit included.
- 4Rated operational current up to 630 A at 380-415 V.
- 5Compact design with IP00 front protection and 10000 mechanical durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Environmental Information | 1SCC301232D0201 |
Pollution Degree | 3 | Product Net Width | 316 mm |
Product Net Height | 250 mm | Product Net Depth / Length | 130 mm |
Product Net Weight | 7 kg | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 630 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 630 A | Degree of Protection | Front IP00 |
Distance Between Phases | Standard | Handle Type | Handle and shaft not included |
Lock Type | No | Mechanical Durability | 10000 |
Mounting Type | Base mounting | Number of Poles | 3P |
Operating Mode | Side operated | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 25 W |
Rated Conditional Short-Circuit Current (Inc) | (800 A fuse, 500 V) 100 kA (800 A fuse, 690 V) 80 kA | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A |
Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 200 kW (400 ... 415 V) 355 kW (500 V) 400 kW (690 V) 630 kW | Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-Circuit Making Capacity (Icm) | (690 V) 80 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
Special Functions | No | Standards | IEC 60947-3 |
Switches Operating Mechanism | Mechanism at the End of the Switch 03 (Left Side) | Terminal Type | Lug terminals |
Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122233 |
IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch | eClass | V11.1 : 27371403 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Finland) | 3660842 |
Manufacturer ID | 1SCA022860R2240 |
