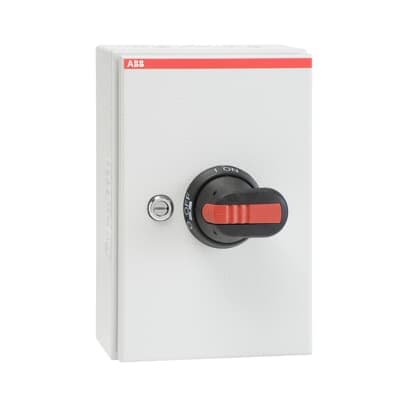

Product Model
OT63ETMM3TE
Selling Points
- 1Engineered for reliability in extreme conditions and tested for longevity.
- 2Suitable for use in power distribution, switchgear, motor control centers, and photovoltaic power generation systems.
- 3Built to be compact, making it suitable for space-constrained applications.
- 4Designed to disconnect electrical circuits safely without the use of fuses.
- 5Compliant with IEC 60947-3, UL508, UL98, and CSA standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
Product Net Width | 165 mm | Product Net Height | 250 mm |
Product Net Depth / Length | 110 mm | Product Net Weight | 2.36 kg |
Cable Cross-Section | 10 ... 70 mm² | Cable Entry Position | Top and/or Bottom |
Cable Outlets Per Side | 2xø32.5+ø16.5 / 2xø32.5+ø16.5 | Connecting Capacity Main Circuit | Screw Clamp 10 ... 70 mm² Screw Clamp / PE Terminal 2pc,1.5 ... 25 mm² |
Conventional Thermal Current (Ithe) | Fully Enclosed 115 A | Degree of Protection | acc. to IEC 60529 IP65 |
Enclosure Material | Steel sheet | Handle Color | Black |
Handle Type | Pistol handle | Impact Resistance Rating | Housing IK09 |
Maximum Mounted Auxiliary Contacts | 2 NO, 1 NC | Mounted Auxiliary Contacts | 1 NO, 0 NC |
Neutral Type | No neutral terminal | Number of Auxiliary Contacts NC | 0 |
Number of Auxiliary Contacts NO | 1 | Number of Poles | 3P |
Pollution Degree | 3 | Power Loss | at Rated Operating Conditions per Pole 4 W |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 63 A (500 V) 63 A (690 V) 63 A |
Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 63 A (500 V) 50 A (690 V) 35 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 30 kW (500 V) 30 kW (690 V) 30 kW |
Rated Operational Voltage | Main Circuit 750 V | Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 3.6 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kA | Recommended Screw Driver | Main Circuit Hexagon 4 |
Special Functions | EMC | Standards | IEC 60947-1, -3 |
Tightening Torque | Main Circuit 6 N·m | Wire Stripping Length | 20 mm |
Wire Stripping Length | 20 mm | Recommended Screw Driver | Main Circuit Hexagon 4 |
Tightening Torque | Main Circuit 6 N·m | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
UNSPSC | 39122205 | IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
E-Number (Finland) | 3601744 | E-Number (Norway) | 1429473 |
E-Number (Sweden) | 3141207 | Manufacturer ID | 1SCA022734R6280 |
Specifications may be subject to change without notice
