ABBIsolating switch
Product Model

OT63F3C

Manufacturer

ABB

Category

Isolating switch

Product ID

87238

In Stock
Last updated: 2025/4/26
View Specifications

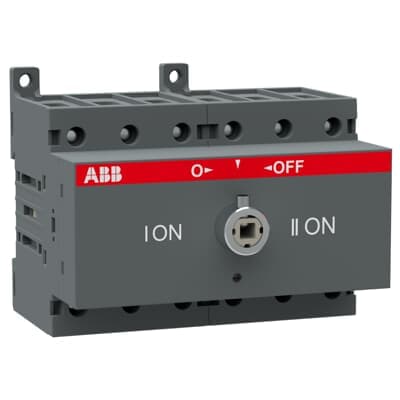

ABB OT63F3C

Selling Points

  • 1High Amperage Rating: 60 A for robust electrical operations.
  • 2Powerful Performance: 22 kW power rating for efficient energy management.
  • 3Durable Enclosure: IP20 protection ensures long-lasting performance in various environments.
  • 4Versatile Mounting: Base mount design for easy installation and flexibility.
  • 5Front Operated: Easy-to-use front operation for seamless switch changes.
Product Details
OT63F3C
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Degree of Protection
Front IP20
Pollution Degree
3
Product Net Width
105 mm 4.13 in
Product Net Height
92 mm 3.62 in
Product Net Depth / Length
85 mm 3.35 in
Product Net Weight
0.64 kg 1.41 lb
Cable Cross-Section
1.5 ... 35 mm²
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 63 A
Conventional Thermal Current (Ithe)
Fully Enclosed 63 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft not included
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 2.8 W
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
750 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 63 A (500 V) 63 A (690 V) 63 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 63 A (500 V) 63 A (690 V) 63 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 63 A (500 V) 45 A (690 V) 20 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 22 kW (500 V) 15 kW (690 V) 15 kW
Rated Operational Voltage
Main Circuit 750 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 1 kiloampere rms
Standards
UL 98 / IEC60947-3
Switches Operating Mechanism
Mechanism on Top of the Switch
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 2 N·m
Transition Type
Open
Ampere Rating
63 A
Horsepower Rating UL/CSA
(acc. to UL 200 V) 15 Hp (acc. to UL 208 V) 15 Hp (acc. to UL 240 V) 15 Hp (acc. to UL 480 V) 30 Hp (acc. to UL 600 V) 30 Hp
Tightening Torque
acc. IEC 60947-1 2 N·m
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3601450
E-Number (Norway)
4363554
E-Number (Sweden)
3171263
Manufacturer ID
1SCA105338R1001

Specifications may be subject to change without notice
