Product Model

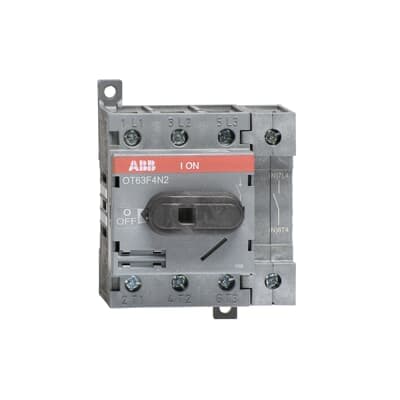

OT63F4N2
Selling Points
- 1High Power Rating: Handles up to 30 HP with a 63 A amperage rating.
- 2DIN Rail Mountable: Conveniently install on DIN rails for space-saving designs.
- 3IP20 Enclosure: Provides IP20 terminal protection for reliable operation.
- 4Versatile Applications: Suitable for power distribution, machinery, and photovoltaic installations.
- 5Compact Design: Achieves a short current path with a double-sided spring construction, reducing footprint.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP20 | Environmental Information | 1SCC301263D0201 |
Pollution Degree | 3 | Product Net Width | 70 mm |
Product Net Height | 91.5 mm | Product Net Depth / Length | 72.5 mm |
Product Net Weight | 0.31 kg | Cable Cross-Section | Cu 1.5 ... 35 mm² |
Connecting Capacity Main Circuit | Flexible with Ferrule 1x Cu 1.5â¦4 mm² Solid 1x Cu 1.5â¦6 mm² Flexible 1x Cu 1.5â¦35 mm² Stranded 1x Cu 1.5â¦35 mm² | Conventional Free-air Thermal Current (Ith) | Î = 40 °C 63 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 63 A | Degree of Protection | Front IP20 |
Distance Between Phases | Standard | Fourth Pole Position | Right Side |
Fourth Pole Type | Switched - Simultaneous Function | Handle Type | Knob Handle and shaft not included |
Lock Type | No | Mechanical Durability | 20000 |
Mounting Type | Base mounting | Number of Poles | 4P |
Operating Mode | Front operated | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 2.8 W |
Rated Conditional Short-Circuit Current (Inc) | (100 A fuse, â¤415 V) 50 kA (100 A fuse, 500 V) 100 kA (80 A fuse, 690 V) 50 kA | Rated Impulse Withstand Voltage (Uimp) | 8 kV |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 63 A (500 V) 63 A (690 V) 63 A |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 63 A (500 V) 63 A (690 V) 63 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 63 A (500 V) 45 A (690 V) 20 A |
Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 11 kW (400 ... 415 V) 22 kW (500 V) 22 kW (690 V) 15 kW | Rated Operational Voltage | Main Circuit 750 V |
Rated Short-Circuit Making Capacity (Icm) | (690 V) 2.1 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1.5 kA |
Recommended Screw Driver | Main Circuit Pozidriv 2 | Special Functions | No |
Standards | IEC 60947-3 / UL 508 / CSA C22.2 No. 14 | Switches Operating Mechanism | Mechanism on Top of the Switch |
Terminal Type | Screw Terminals | Tightening Torque | acc. IEC 60947-1 2 N·m |
Wire Stripping Length | Main Circuit 10-12 mm | Maximum Operating Voltage UL/CSA | 600 V |
Ampere Rating | 60 A | Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 2 Hp (240 V AC) Single Phase 7.5 Hp (440 ... 480 V AC) Single Phase 15 Hp (550 ... 600 V AC) Single Phase 15 Hp (220 ... 240 V AC) Three Phase 15 Hp (440 ... 480 V AC) Three Phase 30 Hp (550 ... 600 V AC) Three Phase 30 Hp |
Wire Stripping Length | Main Circuit 10-12 mm | Recommended Screw Driver | Main Circuit Pozidriv 2 |
Tightening Torque | acc. IEC 60947-1 2 N·m | Tightening Torque UL/CSA | 18 in·lb |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122233 |
IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch | eClass | V11.1 : 27371403 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Finland) | 3601451 |
E-Number (Norway) | 4363527 | E-Number (Sweden) | 3171070 |
Manufacturer ID | 1SCA105365R1001 |
Specifications may be subject to change without notice
