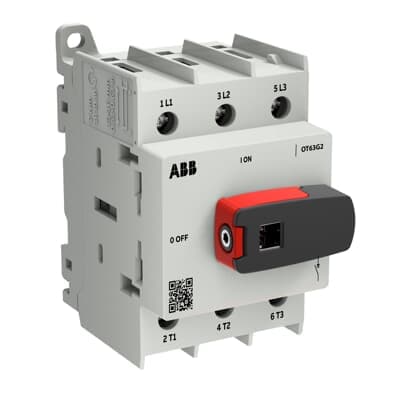

Product Model
OT63G2-3BS
Selling Points
- 1High performance in extreme conditions.
- 2Compact and reliable design for space-saving installations.
- 3Equipped with comprehensive safety features for secure operation.
- 4Front-operated non-fusible disconnect switch for easy handling.
- 5Meets IEC 60947-3 standards for durability and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP20 | Environmental Information | 1SCC301333D0201 |
Pollution Degree | 3 | Product Net Width | 52.5 mm |
Product Net Height | 91.5 mm | Product Net Depth / Length | 73 mm |
Product Net Weight | 0.251 kg | Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x Cu 1.5â¦4 mm² Solid 1/2x Cu 1.5â¦6 mm² Flexible 1x Cu 1.5â¦35 mm² Flexible 2x Cu 1.5â¦16 mm² Stranded 1x Cu 1.5â¦35 mm² Stranded 2x Cu 1.5â¦16 mm² |
Conventional Free-air Thermal Current (Ith) | 63 A | Conventional Thermal Current (Ithe) | 63 A |
Degree of Protection | Front IP20 | Handle Color | Black |
Handle Length | 37 mm | Handle Type | Knob Handle External handle and shaft not included |
Lock Type | Yes | Maximum Mounted Auxiliary Contacts | 4 NO, 4 NC |
Mechanical Durability | Nr. Operations 100000 | Mounting Type | Base/DIN mounting |
Number of Poles | 3P | Operating Mode | Front operated |
Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out |
Power Loss | at Rated Operating Conditions per Pole 2.2 W | Rated Conditional Short-Circuit Current (Inc) | (80 A fuse, 690 V) 50 kA |
Rated Impulse Withstand Voltage (Uimp) | 8 kV | Rated Insulation Voltage (Ui) | acc. to IEC 60947-1 800 V |
Rated Operational Current AC-21A (Ie) | (415 V) 63 A (690 V) 63 A | Rated Operational Current AC-22A (Ie) | (415 V) 63 A (690 V) 63 A |
Rated Operational Current AC-23A (Ie) | (415 V) 63 A (690 V) 32 A | Rated Operational Power AC-23A (Pe) | (415 V) 30 kW (690 V) 30 kW |
Rated Operational Voltage | Main Circuit 800 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 3.5 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1.5 kA for 0.2 s 2.5 kA | Recommended Screw Driver | Main Circuit Pozidriv 2 |
Special Functions | No | Standards | IEC60947-3 UL60947-4-1 CSA C22.2 No.14 |
Switches Operating Mechanism | Mechanism on Top of the Switch | Terminal Type | Screw Terminals |
Tightening Torque | acc. IEC 60947-1 2 N·m | Wire Stripping Length | Main Circuit 13-16 mm Main Circuit 0.51-0.63 in |
Maximum Operating Voltage UL/CSA | 600 V | Ampere Rating | 63 A |
Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 2 Hp (240 V AC) Single Phase 7.5 Hp (440 ... 480 V AC) Single Phase 15 Hp (550 ... 600 V AC) Single Phase 15 Hp (110 ... 120 V AC) Three Phase 5 Hp (240 V AC) Three Phase 15 Hp (440 ... 480 V AC) Three Phase 30 Hp (550 ... 600 V AC) Three Phase 30 Hp | Wire Size | 1x 16-2 AWG 2x 16-8 AWG |
Wire Stripping Length | Main Circuit 13-16 mm Main Circuit 0.51-0.63 in | Recommended Screw Driver | Main Circuit Pozidriv 2 |
Tightening Torque | acc. IEC 60947-1 2 N·m | Tightening Torque UL/CSA | UL 18 lbf·in |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122233 |
IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch | eClass | V11.1 : 27371403 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA162548R1001 |
