ABBIsolating switch
Product Model

OT800E03C

Manufacturer

ABB

Category

Isolating switch

Product ID

85870

In Stock
Last updated: 2025/4/19
View Specifications

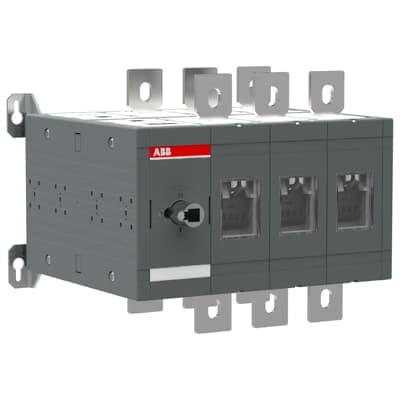

ABB OT800E03C

Selling Points

  • 1High performance and quick-make/quick-break operation.
  • 2Compact design with a uniquely short current path and double-sided spring construction.
  • 3IP65 rating for protection against dust and water.
  • 4Suitable for diverse applications including machinery, power distribution, and photovoltaic installations.
  • 5Available in multiples of 1 piece with a minimum order quantity of 1.
Product Details
OT800E03C
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Product Net Width
311 mm 12.24 in
Product Net Height
250 mm 9.84 in
Product Net Depth / Length
280 mm 11.02 in
Product Net Weight
15 kg 33.07 lb
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 800 A
Conventional Thermal Current (Ithe)
Fully Enclosed 800 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft not included
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 40 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 800 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 800 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 450 kW (500 V) 560 kW (690 V) 800 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 20 kiloampere rms
Switches Operating Mechanism
Mechanism at the End of the Switch 03 (Left Side)
Terminal Type
Screw Terminals
Terminal Width
40 mm
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Transition Type
Open
Ampere Rating
800 A
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Manufacturer ID
1SCA022785R4270
