Product Model

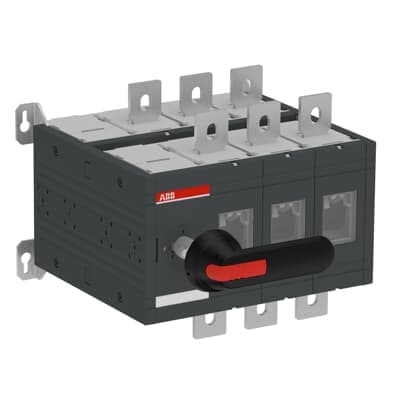

OT800E03DP
Selling Points
- 1High-performance solution with integrated safety features.
- 2Compact design for space-saving installations.
- 3Reliable operation in extreme conditions.
- 4Compatible with ABB's switches and fusegear products.
- 5Integrates seamlessly with ABB Ability™ Energy and Asset Manager.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Environmental Information | 1SCC301232D0201 |
Pollution Degree | 3 | Product Net Width | 311 mm |
Product Net Height | 250 mm | Product Net Depth / Length | 280 mm |
Product Net Weight | 13.8 kg | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 800 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 800 A | Degree of Protection | Front IP00 |
Handle Color | Black | Handle Type | Handle and shaft included |
Lock Type | Yes | Mechanical Durability | 10000 |
Number of Poles | 6P | Operating Mode | Front operated |
Pollution Degree | 3 | Power Loss | at Rated Operating Conditions per Pole 40 W |
Rated Conditional Short-Circuit Current (Inc) | (800 A fuse, 500 V) 100 kA (800 A fuse, 690 V) 80 kA | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A |
Rated Operational Current DC-21B (Ie) | (1000 V) 600 A | Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 250 kW (400 ... 415 V) 450 kW (500 V) 560 kW (690 V) 800 kW |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 80 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA | Standards | IEC 60947-3 |
Terminal Type | Lug terminals | Terminal Width | 39 mm |
Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
Object Classification Code | Q | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA113347R1001 |
Specifications may be subject to change without notice
