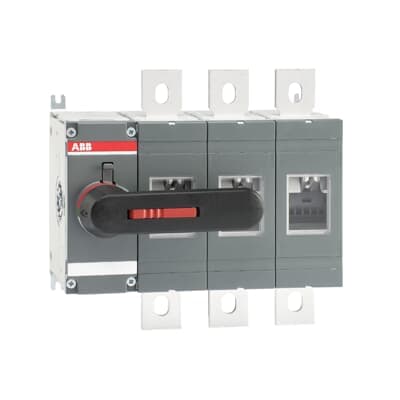

Product Model
OT800E03K
Selling Points
- 1Compact Design: Ideal for confined spaces with a small footprint.
- 2Safety Features: Includes a black test-off-on plastic handle and shaft as standard, padlockable in the off-position.
- 3High Performance: Reliable in extreme conditions with a rated impulse withstand voltage of 12 kV.
- 4Versatile Installation: Suitable for front mounting center and distribution board installations.
- 5Robust Construction: Meets IEC standards with a pollution degree of 3 and a rated thermal current of 160 A in open air.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Environmental Information | 1SCC301232D0201 |
Pollution Degree | 3 | Product Net Width | 266 mm |
Product Net Height | 250 mm | Product Net Depth / Length | 157 mm |
Product Net Weight | 6.4 kg | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 800 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 800 A | Degree of Protection | Front IP00 |
Distance Between Phases | Standard | Handle Color | Black |
Handle Type | Direct mounted pistol type handle | Lock Type | Yes |
Mechanical Durability | 10000 | Mounting Type | Base mounting |
Number of Poles | 3P | Operating Mode | Front operated |
Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out |
Power Loss | at Rated Operating Conditions per Pole 40 W | Rated Conditional Short-Circuit Current (Inc) | (800 A fuse, 500 V) 100 kA (800 A fuse, 690 V) 80 kA |
Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A |
Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A | Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 250 kW (400 ... 415 V) 450 kW (500 V) 560 kW (690 V) 800 kW |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 80 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA | Special Functions | No |
Standards | IEC 60947-3 | Switches Operating Mechanism | Mechanism at the End of the Switch 03 (Left Side) |
Terminal Type | Lug terminals | Terminal Width | 39 mm |
Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Finland) | 3660812 |
E-Number (Norway) | 4337051 | Manufacturer ID | 1SCA022779R5160 |
Specifications may be subject to change without notice
