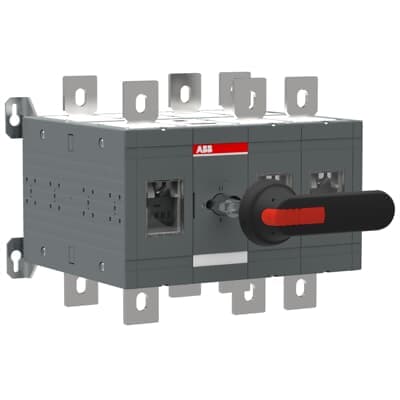

Product Model
OT800E12CFP
Selling Points
- 1Robust Design & IP65 Protection: Built with a durable black plastic handle and shaft, ensuring high protection against environmental factors.
- 2Quick Switching: Achieve fast switching with an operating angle of 90°, reducing downtime and enhancing efficiency.
- 3High Performance: Suitable for 800A AC and 22A DC, making it versatile for various electrical applications.
- 4Adjustable Installation Depth: The shaft is adjustable, allowing for flexible installation options to suit different settings.
- 5Padlockable & Door Interlock: The handle is padlockable in the OFF-position and features a door interlock in the ON-position for added security.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP20 | Environmental Information | 1SCC303050D0201 |
Pollution Degree | 3 | Product Net Width | 311 mm 12.24 in |
Product Net Height | 250 mm 9.84 in | Product Net Depth / Length | 280 mm 11.02 in |
Product Net Weight | 15.52 kg 34.22 lb | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 800 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 800 A | Degree of Protection | Front IP20 |
Distance Between Phases | Standard | Handle Color | Black |
Handle Type | Handle and shaft included | Mounting Type | Base mounting |
Number of Poles | 3P | Operating Mode | Front operated |
Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
Power Loss | at Rated Operating Conditions per Pole 40 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Insulation Voltage (Ui) | 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A |
Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 800 A | Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 800 A |
Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 450 kW (500 V) 560 kW (690 V) 800 kW | Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kiloampere rms | Switches Operating Mechanism | Mechanism Between the Poles 12 (Between the Poles) |
Terminal Type | Screw Terminals | Terminal Width | 20 mm |
Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m | Transition Type | Fast |
Ampere Rating | 800 A | Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Finland) | 3641689 |
Manufacturer ID | 1SCA106966R1001 |
