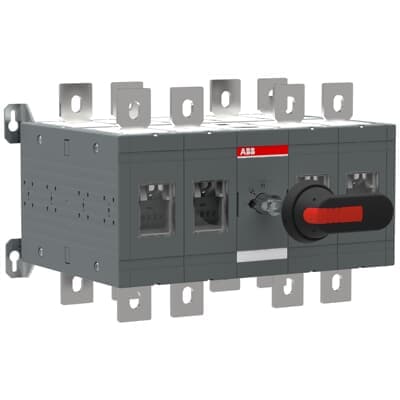

ABB OT800E22CP

Selling Points

  • 1Handles 800A, suitable for demanding industrial applications.
  • 2Provides four poles for comprehensive switching control.
  • 3Designed with ABB's quality and reliability in mind.
  • 4Ideal for various industrial settings, including energy distribution and automation.
  • 5Built to withstand harsh environments and frequent use.
Product Details
OT800E22CP
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Degree of Protection
Front IP20
Pollution Degree
3
Product Net Width
376 mm 14.8 in
Product Net Height
250 mm 9.84 in
Product Net Depth / Length
280 mm 11.02 in
Product Net Weight
18.51 kg 40.81 lb
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 800 A
Conventional Thermal Current (Ithe)
Fully Enclosed 800 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Left and Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
4
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 40 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 800 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 800 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 450 kW (500 V) 560 kW (690 V) 800 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 20 kiloampere rms
Switches Operating Mechanism
Mechanism Between the Poles 22 (Between the Poles)
Terminal Type
Screw Terminals
Terminal Width
40 mm
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Transition Type
Open
Ampere Rating
800 A
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Manufacturer ID
1SCA103964R1001
