Product Model

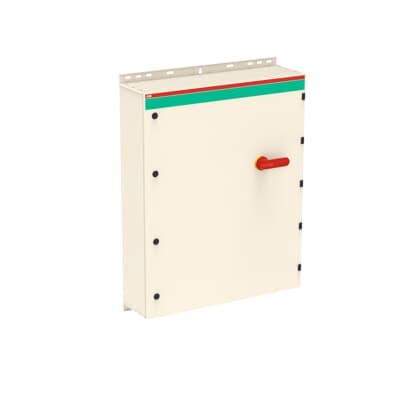

OT800EAUR3AZ
Selling Points
- 1UV Protected and Water Resistant: The OT800EAUR3AZ features a UV-protected, rigid glass reinforced polycarbonate enclosure that is also resistant to low-pressure water.
- 2Galvanized Steel Enclosure: The switch has a galvanized steel enclosure with a polyester coating, ensuring durability and suitability for outdoor use.
- 3Inbuilt Gas Pressure Relief: The enclosure includes an inbuilt gas pressure relief function to protect users in case of an internal arc.
- 4Earthed via Hinges: The door is earthed via the hinges for enhanced safety.
- 5Customizable Cable Entry: The switch supports various cable entry types (blank, ring-flange, or C-flange) with different configurations for top/bottom or bottom/bottom cable arrangements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
Product Net Width | 800 mm | Product Net Height | 1000 mm |
Product Net Depth / Length | 230 mm | Product Net Weight | 43.8 kg |
Cable Entry Position | Bottom/Bottom | Cable Outlets Per Side | Blank / 8xring-flange, Knock-outs: 3x10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm |
Connecting Capacity Main Circuit | Hole Diameter 12 mm Screw Clamp / PE Terminal 8pc,25 ... 120 mm² | Conventional Thermal Current (Ithe) | Fully Enclosed 720 A |
Degree of Protection | acc. to IEC 60529 IP65 | Enclosure Material | Steel sheet |
Handle Color | Red / Yellow | Handle Type | Pistol handle |
Impact Resistance Rating | Housing IK09 | Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
Mounted Auxiliary Contacts | 2 NO, 1 NC | Neutral Type | No neutral terminal |
Number of Auxiliary Contacts NC | 1 | Number of Auxiliary Contacts NO | 2 |
Number of Poles | 3P | Pollution Degree | 3 |
Power Loss | at Rated Operating Conditions per Pole 40 W | Rated Conditional Short-Circuit Current (Inc) | 90 kA |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 720 A (500 V) 720 A (690 V) 720 A |
Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 720 A (500 V) 720 A (690 V) 720 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 400 kW (500 V) 500 kW (690 V) 710 kW |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 80 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA | Recommended Screw Driver | Main Circuit M12 |
Standards | IEC 60947-1, -3 | Tightening Torque | Main Circuit 75 N·m |
Recommended Screw Driver | Main Circuit M12 | Tightening Torque | Main Circuit 75 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122205 |
IDEA Granular Category Code (IGCC) | 5166 >> Safety switch | eClass | V11.1 : 27371403 |
WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Manufacturer ID | 1SCA022828R0020 |
Specifications may be subject to change without notice
