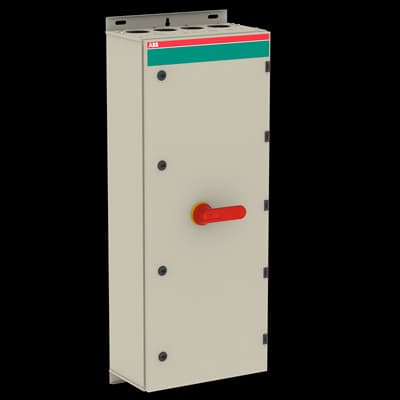

Product Model
OT800ETRR3AZ
Selling Points
- 1Galvanized Steel Enclosure: Durable and resistant to corrosion.
- 2UV Light and Ingress Protection: Suitable for outdoor use in harsh environments.
- 3Gas Pressure Relief Function: Ensures user safety in case of internal arcs.
- 4Padlockable Handle: Secure operation with 3 padlocks.
- 5Interlock Function: Prevents accidental operation with cover interlock.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
Product Net Width | 400 mm | Product Net Height | 1000 mm |
Product Net Depth / Length | 230 mm | Product Net Weight | 28.51 kg |
Cable Entry Position | Top/Bottom | Cable Outlets Per Side | 4xring-flange / 4xring-flange, Knock-outs: 3x10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm |
Connecting Capacity Main Circuit | Hole Diameter 12 mm Screw Clamp / PE Terminal 4pc,25 ... 120 mm² | Conventional Thermal Current (Ithe) | Fully Enclosed 720 A |
Degree of Protection | acc. to IEC 60529 IP65 | Enclosure Material | Steel sheet |
Handle Color | Red / Yellow | Handle Type | Pistol handle |
Impact Resistance Rating | Housing IK09 | Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
Mounted Auxiliary Contacts | 2 NO, 1 NC | Neutral Type | No neutral terminal |
Number of Auxiliary Contacts NC | 1 | Number of Auxiliary Contacts NO | 2 |
Number of Poles | 3P | Pollution Degree | 3 |
Power Loss | at Rated Operating Conditions per Pole 40 W | Rated Conditional Short-Circuit Current (Inc) | 90 kA |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 720 A (500 V) 720 A (690 V) 720 A |
Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 720 A (500 V) 720 A (690 V) 720 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 400 kW (500 V) 500 kW (690 V) 710 kW |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 80 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA | Recommended Screw Driver | Main Circuit M12 |
Special Functions | EMC | Standards | IEC 60947-1, -3 |
Tightening Torque | Main Circuit 75 N·m | Recommended Screw Driver | Main Circuit M12 |
Tightening Torque | Main Circuit 75 N·m | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
UNSPSC | 39122205 | IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
eClass | V11.1 : 27371403 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA022828R2070 |
Specifications may be subject to change without notice
