Product Model

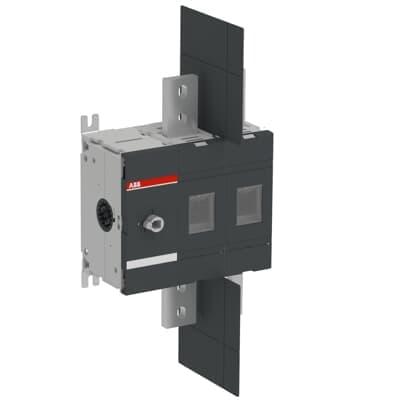

OT800U02
Selling Points
- 1Designed for reliability and safety in electrical systems.
- 2Offers a broad range of amperage sizes to suit various applications.
- 3Meets stringent safety standards for UL98 and IEC certifications.
- 4Din rail, door, or base mount for versatile installation.
- 5Enhances safety with a finger-proof design for improved protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Environmental Information | 1SCC301233D0201 |
Pollution Degree | 3 | Product Net Width | 254.5 mm |
Product Net Height | 372 mm | Product Net Depth / Length | 151.5 mm |
Product Net Weight | 12.1 kg | Conventional Thermal Current (Ithe) | Fully Enclosed 800 A |
Degree of Protection | Front IP00 | Distance Between Phases | Standard |
Handle Type | Handle and shaft not included | Lock Type | No |
Mechanical Durability | 6000 | Mounting Type | Base mounting |
Number of Poles | 2P | Operating Mode | Front operated |
Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out |
Power Loss | at Rated Operating Conditions per Pole 29 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 110 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA | Special Functions | No |
Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 | Switches Operating Mechanism | Mechanism at the End of the Switch 02 (Left Side) |
Terminal Type | Lug terminals | Tightening Torque | acc. IEC 60947-1 56.5 N·m |
Maximum Operating Voltage UL/CSA | 600 V | Ampere Rating | 800 A |
Tightening Torque | acc. IEC 60947-1 56.5 N·m | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA112977R1001 |
Specifications may be subject to change without notice
