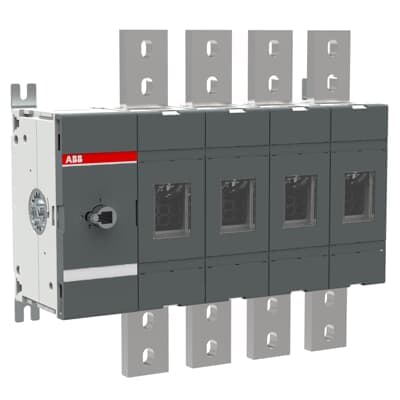

Product Model
OT800U04-1000
Selling Points
- 1High amperage rating of 800 A for robust applications.
- 2Compact dimensions (14.6 in H x 13 in W x 5 in D) for space-saving installations.
- 3Reliable in extreme conditions with a short circuit current rating of 92 kA.
- 4Easy to install with a front-operated non-fusible design.
- 5Suitable for low voltage applications up to 1000 VDC and high horsepower ratings (200 hp at 240 VAC, 500 hp at 480/600 VAC).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Environmental Information | 1SCC301233D0201 | Product Net Width | 414.5 mm |
Product Net Height | 372 mm | Product Net Depth / Length | 151.5 mm |
Product Net Weight | 22.2 kg | Number of Poles | 4P |
Power Loss | at Rated Operating Conditions per Pole 48 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
Standards | UL 98 / CSA C22.2 NO.4 | Maximum Operating Voltage UL/CSA | 1000 V |
Ampere Rating | 600 A | Object Classification Code | Q |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA161435R1001 |
Specifications may be subject to change without notice
