Product Model

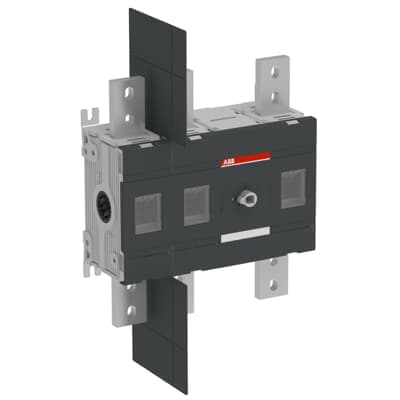

OT800U21
Selling Points
- 1High-performance design for reliable operation.
- 2Non-fusible disconnect switch for safe disconnection.
- 3Compact enclosure for easy installation.
- 4800 Amp current rating for heavy-duty applications.
- 5Three-pole configuration for balanced power distribution.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Environmental Information | 1SCC301233D0201 |
Pollution Degree | 3 | Product Net Width | 334.5 mm |
Product Net Height | 372 mm | Product Net Depth / Length | 151.5 mm |
Product Net Weight | 17.2 kg | Conventional Thermal Current (Ithe) | Fully Enclosed 800 A |
Degree of Protection | Front IP00 | Distance Between Phases | Standard |
Handle Type | Handle and shaft not included | Lock Type | No |
Mechanical Durability | 6000 | Mounting Type | Base mounting |
Number of Poles | 3P | Operating Mode | Front operated |
Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out |
Power Loss | at Rated Operating Conditions per Pole 29 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A |
Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 710 kW (500 V) 900 kW (690 V) 1200 kW |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 110 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA | Special Functions | No |
Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 | Switches Operating Mechanism | Mechanism Between the Poles 21 (Between the Poles) |
Terminal Type | Lug terminals | Tightening Torque | acc. IEC 60947-1 56.5 N·m |
Maximum Operating Voltage UL/CSA | 600 V | Ampere Rating | 800 A |
Horsepower Rating UL/CSA | (acc. to UL 240 V) 250 Hp (acc. to UL 480 V) 500 Hp (acc. to UL 600 V) 500 Hp | Tightening Torque | acc. IEC 60947-1 56.5 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122233 |
IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch | eClass | V11.1 : 27371403 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA111494R1001 |
Specifications may be subject to change without notice
