Product Model

OT80F4N1

Manufacturer

ABB

Category

Isolating switch

Product ID

87650

In Stock
Last updated: 2025/4/27
View Specifications

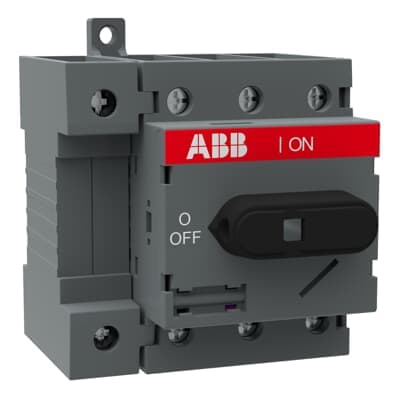

ABB OT80F4N1

Selling Points

  • 1Provides safe and efficient operation with a breaking capacity of 6ka.
  • 2Designed for quick and perfect installation, minimizing downtime and labor costs.
  • 3Manufactured by ABB, a renowned brand in the electrical industry, ensuring high-quality performance and durability.
  • 4Suitable for 220/400v and 380v rated voltage, making it versatile for different industrial settings.
  • 5Backed by a one-year warranty and 100% new condition, providing users with added protection and assurance.
Product Details
OT80F4N1
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Degree of Protection
Front IP20
Environmental Information
1SCC301263D0201
Pollution Degree
3
Product Net Width
70 mm
Product Net Height
91.5 mm
Product Net Depth / Length
72.5 mm
Product Net Weight
0.03 kg
Cable Cross-Section
Cu 1.5 ... 35 mm²
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 80 A
Conventional Thermal Current (Ithe)
Fully Enclosed 80 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Left Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Type
Knob Handle and shaft not included
Lock Type
No
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 4.5 W
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 80 A (500 V) 80 A (690 V) 80 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 80 A (500 V) 80 A (690 V) 80 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 75 A (500 V) 58 A (690 V) 20 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 22 kW (400 ... 415 V) 37 kW (500 V) 37 kW (690 V) 18.5 kW
Rated Operational Voltage
Main Circuit 750 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 2.1 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 1.5 kA
Special Functions
No
Standards
IEC 60947-3 / UL 508 / CSA C22.2 No. 14
Switches Operating Mechanism
Mechanism on Top of the Switch
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 2 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
80 A
Horsepower Rating UL/CSA
(110 ... 120 V AC) Single Phase 2 Hp (240 V AC) Single Phase 10 Hp (440 ... 480 V AC) Single Phase 20 Hp (550 ... 600 V AC) Single Phase 20 Hp (220 ... 240 V AC) Three Phase 20 Hp (440 ... 480 V AC) Three Phase 40 Hp (550 ... 600 V AC) Three Phase 40 Hp
Tightening Torque
acc. IEC 60947-1 2 N·m
Tightening Torque UL/CSA
18 in·lb
Object Classification Code
Q
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Manufacturer ID
1SCA105419R1001
