Product Model

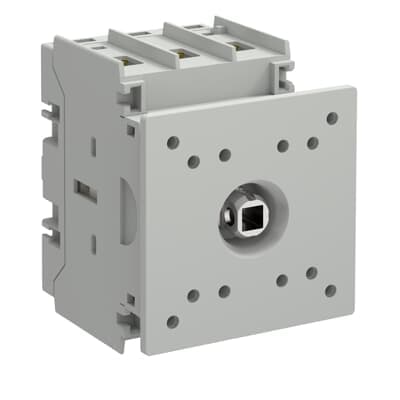

OT80G2-3DS
Selling Points
- 1High performance and reliability in extreme conditions.
- 2Compact design for space-saving installations.
- 3Integrated safety features for enhanced protection.
- 4Suitable for industrial applications requiring high reliability.
- 5Meets IEC 60947 technical standards for electrical safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP20 | Environmental Information | 1SCC301333D0201 |
Pollution Degree | 3 | Product Net Width | 64 mm |
Product Net Height | 81 mm | Product Net Depth / Length | 70 mm |
Product Net Weight | 0.267 kg | Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x Cu 1.5â¦4 mm² Solid 1/2x Cu 1.5â¦6 mm² Flexible 1x Cu 1.5â¦35 mm² Flexible 2x Cu 1.5â¦16 mm² Stranded 1x Cu 1.5â¦35 mm² Stranded 2x Cu 1.5â¦16 mm² |
Conventional Free-air Thermal Current (Ith) | 80 A | Conventional Thermal Current (Ithe) | 80 A |
Degree of Protection | Front IP20 | Handle Type | Handle not included |
Maximum Mounted Auxiliary Contacts | 4 NO, 4 NC | Mechanical Durability | Nr. Operations 100000 |
Mounting Type | Door mounting | Number of Poles | 3P |
Operating Mode | Front operated | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 3.4 W |
Rated Conditional Short-Circuit Current (Inc) | (80 A fuse, 690 V) 50 kA | Rated Impulse Withstand Voltage (Uimp) | 8 kV |
Rated Insulation Voltage (Ui) | acc. to IEC 60947-1 800 V | Rated Operational Current AC-21A (Ie) | (415 V) 80 A (690 V) 80 A |
Rated Operational Current AC-22A (Ie) | (415 V) 80 A (690 V) 80 A | Rated Operational Current AC-23A (Ie) | (415 V) 80 A (690 V) 40 A |
Rated Operational Power AC-23A (Pe) | (415 V) 45 kW (690 V) 37 kW | Rated Operational Voltage | Main Circuit 800 V |
Rated Short-Circuit Making Capacity (Icm) | (690 V) 3.5 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1.5 kA for 0.2 s 2.5 kA |
Recommended Screw Driver | Main Circuit Pozidriv 2 | Special Functions | No |
Standards | IEC60947-3 UL60947-4-1 CSA C22.2 No.14 | Switches Operating Mechanism | Mechanism on Top of the Switch |
Terminal Type | Screw Terminals | Tightening Torque | acc. IEC 60947-1 2 N·m |
Wire Stripping Length | Main Circuit 13-16 mm Main Circuit 0.51-0.63 in | Maximum Operating Voltage UL/CSA | 600 V |
Ampere Rating | 80 A | Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 2 Hp (240 V AC) Single Phase 10 Hp (440 ... 480 V AC) Single Phase 20 Hp (550 ... 600 V AC) Single Phase 20 Hp (110 ... 120 V AC) Three Phase 5 Hp (240 V AC) Three Phase 20 Hp (440 ... 480 V AC) Three Phase 40 Hp (550 ... 600 V AC) Three Phase 40 Hp |
Wire Size | 1x 16-2 AWG 2x 16-8 AWG | Wire Stripping Length | Main Circuit 13-16 mm Main Circuit 0.51-0.63 in |
Recommended Screw Driver | Main Circuit Pozidriv 2 | Tightening Torque | acc. IEC 60947-1 2 N·m |
Tightening Torque UL/CSA | UL 18 lbf·in | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA162569R1001 |
Specifications may be subject to change without notice
