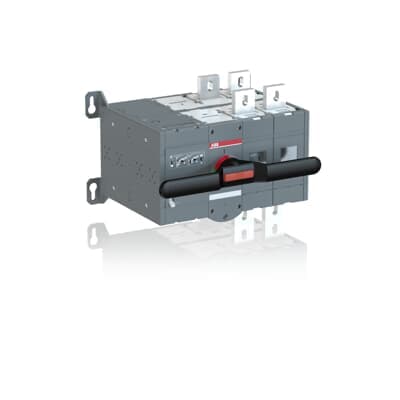

Product Model
OTM1000E2CM230V
Selling Points
- 1High Current Rating: Handles up to 1000A for reliable power transfer.
- 2Motorized Operation: Electrically-operated changeover switch with motorized switching.
- 3Robust Insulation: Rated insulation voltage of 1000 V and impulse withstand voltage of 12 kV.
- 4Heavy-Duty Performance: Suited for heavy-duty applications with a CTI of over 600 V.
- 5Versatile Mounting: Can be mounted horizontally, vertically, or flat, making it versatile for various installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP20 | Pollution Degree | 3 |
Product Net Width | 427 mm 16.81 in | Product Net Height | 306 mm 12.05 in |
Product Net Depth / Length | 297 mm 11.69 in | Product Net Weight | 26 kg 57.32 lb |
Conventional Free-air Thermal Current (Ith) | Π= 40 °C 1000 A | Degree of Protection | Front IP20 |
Distance Between Phases | Standard | Handle Color | Black |
Handle Type | Direct mounted handle | Motor Operational Voltage | 220 ... 240 V AC |
Mounting Type | Base mounting | Number of Poles | 2P |
Operating Mode | Front operated | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 19 W |
Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | 1000 V |
Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1000 A (500 V) 1000 A (690 V) 1000 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1000 A (500 V) 1000 A (690 V) 1000 A |
Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 1000 A | Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 1000 A |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kiloampere rms |
Switches Operating Mechanism | Mechanism at the End of the Switch | Terminal Type | Screw Terminals |
Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m | Transition Type | Open |
Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA121279R1001 |
Specifications may be subject to change without notice
