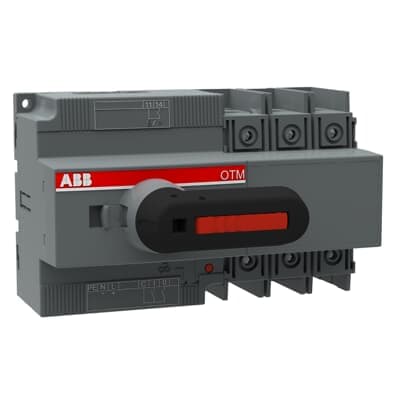

Product Model
OTM100F3M230V
Selling Points
- 1Rated for 750 V main circuit and 690 V short-circuit making capacity.
- 2Compliant with EU Directive 2011/65/EU and Amendment 2015/863, ensuring RoHS and REACH compliance.
- 3Designed for 20,000 operation cycles with a mechanical endurance rating.
- 4Can be operated manually in emergency situations.
- 5Ideal for various industrial applications with a compact footprint.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP20 | Pollution Degree | 3 |
Product Net Width | 160 mm | Product Net Height | 100 mm |
Product Net Depth / Length | 116 mm | Product Net Weight | 0.9 kg |
Cable Cross-Section | Cu 10 ... 70 mm² | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 115 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 115 A | Degree of Protection | Front IP20 |
Distance Between Phases | Standard | Handle Color | Black |
Handle Type | Direct mounted handle | Lock Type | Yes |
Mechanical Durability | 20000 | Motor Operational Voltage | 110 ... 240 V AC/DC |
Mounting Type | Base mounting | Number of Poles | 3P |
Operating Mode | Front operated | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out | Power Loss | at Rated Operating Conditions per Pole 4.0 W |
Rated Conditional Short-Circuit Current (Inc) | (125 A fuse, 415 V) 50 kA (125 A fuse, 690 V) 18 kA (63 A fuse, 690 V) 50 kA | Rated Impulse Withstand Voltage (Uimp) | 8 kV |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 100 A (500 V) 100 A (690 V) 100 A |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 100 A (500 V) 100 A (690 V) 100 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 80 A (500 V) 60 A (690 V) 40 A |
Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 22 kW (400 ... 415 V) 37 kW (500 V) 37 kW (690 V) 37 kW | Rated Operational Voltage | Main Circuit 750 V |
Rated Short-Circuit Making Capacity (Icm) | (690 V) 3.6 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kA |
Special Functions | No | Standards | IEC 60947-3 |
Switches Operating Mechanism | Mechanism at the End of the Switch | Terminal Type | Screw Terminals |
Tightening Torque | acc. IEC 60947-1 6 N·m | Tightening Torque | acc. IEC 60947-1 6 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA122969R1001 |
Specifications may be subject to change without notice
