Product Model

OTM1600E2M230V

Manufacturer

ABB

Category

Dual power conversion switch

Product ID

74377

In Stock
Last updated: 2025/4/18
View Specifications

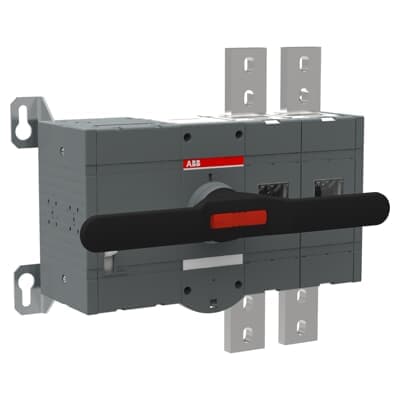

ABB OTM1600E2M230V

Selling Points

  • 1High-Quality Design: Built to meet the highest standards of quality and reliability.
  • 2Efficient Operation: Ensures smooth operation and dependable functionality.
  • 3Compact Solution: Modular design for easy installation and reduced physical footprint.
  • 4Safety Features: Includes padlockable handles to prevent unwanted operation.
  • 5Durable Performance: Virtually maintenance-free across its entire lifespan.
Product Details
OTM1600E2M230V
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Degree of Protection
Front IP00
Environmental Information
1SCC303036D0202
Pollution Degree
3
Product Net Width
426.5 mm
Product Net Height
372 mm
Product Net Depth / Length
153 mm
Product Net Weight
22 kg
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 1600 A
Conventional Thermal Current (Ithe)
Fully Enclosed 1600 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft not included
Lock Type
Yes
Mechanical Durability
6000
Motor Operational Voltage
220 ... 240 V AC
Mounting Type
Base mounting
Number of Poles
2
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out
Power Loss
at Rated Operating Conditions per Pole 48 W
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A
Rated Operational Power AC-23A (Pe)
(400 ... 415 V) 710 kW (500 V) 900 kW (690 V) 1200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 110 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 50 kA
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism at the End of the Switch
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 50 … 75 N·m
Tightening Torque
acc. IEC 60947-1 50 … 75 N·m
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Manufacturer ID
1SCA119470R1001
