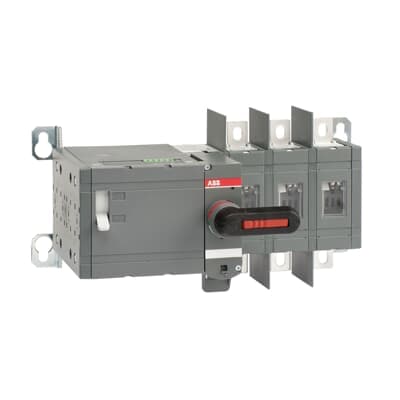

Product Model
OTM160E3WM230C
Selling Points
- 1High-performance motorized switch with rated insulation voltage of 1000 V.
- 2Includes a handle for manual operation in emergency situations.
- 3Equipped with a terminal bolt kit and storage clip for the handle and spare fuses.
- 4Compact design with dimensions (WxHxD/L) 296 mm x 150 mm x 198 mm.
- 5Meets RoHS compliance and follows EU Directive 2002/95/EC.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Pollution Degree | 3 |
Product Net Width | 296 mm | Product Net Height | 150 mm |
Product Net Depth / Length | 198 mm | Product Net Weight | 5.2 kg |
Conventional Free-air Thermal Current (Ith) | Π= 40 °C 200 A | Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
Degree of Protection | Front IP00 | Distance Between Phases | Wide phase distance |
Handle Color | Black | Handle Type | Direct mounted handle |
Lock Type | Yes | Mechanical Durability | 20000 |
Motor Operational Voltage | 220 ... 240 V AC | Mounting Type | Base mounting |
Number of Poles | 3P | Operating Mode | Front operated |
Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out |
Power Loss | at Rated Operating Conditions per Pole 3.2 W | Rated Conditional Short-Circuit Current (Inc) | (315 A fuse, 500 V) 100 kA (355 A fuse, 690 V) 80 kA |
Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 200 A (500 V) 200 A (690 V) 160 A (1000 V AC) 160 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A (500 V) 200 A (690 V) 160 A |
Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A | Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 48 kW (400 ... 415 V) 80 kW (500 V) 112 kW (690 V) 144 kW |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA | Special Functions | Wide phase distance |
Standards | IEC 60947-3 | Switches Operating Mechanism | Mechanism at the End of the Switch |
Terminal Type | Screw Terminals | Tightening Torque | acc. IEC 60947-1 15 ⦠22 N·m |
Tightening Torque | acc. IEC 60947-1 15 ⦠22 N·m | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA115286R1001 |
Specifications may be subject to change without notice
