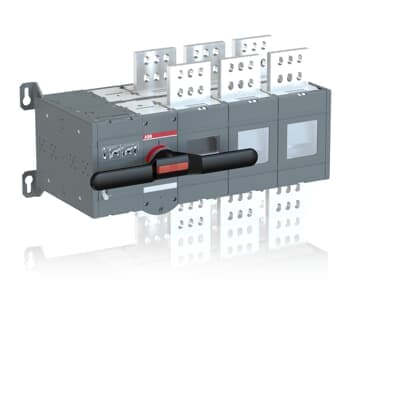

Product Model
OTM2500E3CM230C
Selling Points
- 1High operational current: 2500 A at 500 V.
- 2Robust construction: Withstood 12 kV impulse voltage.
- 3Easy manual operation: Includes handle for manual switching.
- 4Comprehensive kit: Bolt kit with nut and washers for all terminals and male connectors.
- 5Reliable performance: Rated for 1000 V insulation voltage and 55 kA rms short-time withstand current.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP20 | Environmental Information | 1SCC303036D0202 |
Pollution Degree | 3 | Product Net Width | 645 mm 25.39 in |
Product Net Height | 377 mm 14.84 in | Product Net Depth / Length | 372 mm 14.65 in |
Product Net Weight | 78 kg 171.96 lb | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 2500 A |
Degree of Protection | Front IP20 | Distance Between Phases | Standard |
Handle Color | Black | Handle Type | Direct mounted handle |
Motor Operational Voltage | 220 ... 240 V AC | Mounting Type | Base mounting |
Number of Poles | 3P | Operating Mode | Front operated |
Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
Power Loss | at Rated Operating Conditions per Pole 85 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Insulation Voltage (Ui) | 1000 V | Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 2500 A (500 V) 2500 A |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kiloampere rms |
Switches Operating Mechanism | Mechanism at the End of the Switch | Terminal Type | Screw Terminals |
Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m | Transition Type | Open |
Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
eClass | V11.1 : 27371403 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
E-Number (Finland) | 3641804 | Manufacturer ID | 1SCA112710R1001 |
Specifications may be subject to change without notice
