Product Model

OTM2500E4CM110V

Manufacturer

ABB

Category

Dual power conversion switch

Product ID

87728

In Stock
Last updated: 2025/4/27
View Specifications

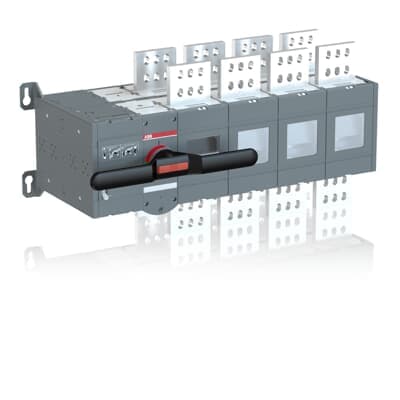

ABB OTM2500E4CM110V

Selling Points

  • 1Reliable Performance: Designed to ensure consistent operation in diverse environments.
  • 2Compact Design: Modular design fits into smaller enclosures, saving space and reducing installation costs.
  • 3Easy Installation: Simple design makes installation straightforward, even for those without prior experience.
  • 4High Durability: Tested against IEC 60947-6-1 standards for extended lifespan and minimal maintenance.
  • 5Versatile Operation: Suitable for manual, remote, and automatic operation, with a wide range of accessories available.
Product Details
OTM2500E4CM110V
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Degree of Protection
Front IP20
Environmental Information
1SCC303036D0202
Pollution Degree
3
Product Net Width
771 mm 30.35 in
Product Net Height
377 mm 14.84 in
Product Net Depth / Length
372 mm 14.65 in
Product Net Weight
95 kg 209.44 lb
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 2500 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Direct mounted handle
Motor Operational Voltage
110 ... 125 V AC/DC
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 85 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21B (Ie)
(380 ... 415 V) 2500 A (500 V) 2500 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 55 kiloampere rms
Switches Operating Mechanism
Mechanism at the End of the Switch
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Transition Type
Open
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
E-Number (Finland)
3641809
Manufacturer ID
1SCA113686R1001
