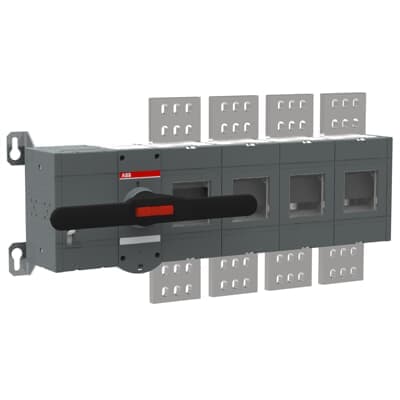

Product Model
OTM2500E4M230C
Selling Points
- 1High Performance: Designed for reliable and efficient electrical operations with a robust mechanical endurance of 20,000 operation cycles.
- 2Advanced Safety Features: Equipped with comprehensive inbuilt safety features, including IP20 protected finger-proof installations and clear visible contacts.
- 3Compact Design: Compact dimensions (770.5 mm x 376.4 mm x 153 mm) for easy installation in various settings.
- 4Versatile Operation: Can be operated manually in emergency situations, ensuring continuous functionality.
- 5Compliance and Certifications: Meets IEC 60947 standards and has no certification needed for ATEX, UL, or VDE compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Pollution Degree | 3 |
Product Net Width | 770.5 mm | Product Net Height | 376.4 mm |
Product Net Depth / Length | 153 mm | Product Net Weight | 40.2 kg |
Conventional Free-air Thermal Current (Ith) | Π= 40 °C 2500 A | Degree of Protection | Front IP00 |
Distance Between Phases | Standard | Fourth Pole Position | Right Side |
Fourth Pole Type | Switched - Simultaneous Function | Handle Color | Black |
Handle Type | Direct mounted handle | Lock Type | Yes |
Mechanical Durability | 6000 | Motor Operational Voltage | 220 ... 240 V AC |
Mounting Type | Base mounting | Number of Poles | 4P |
Operating Mode | Front operated | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out | Power Loss | at Rated Operating Conditions per Pole 85 W |
Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
Rated Operational Current AC-22B (Ie) | (380 ... 415 V) 2500 A (500 V) 2500 A (690 V) 2500 A | Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-Circuit Making Capacity (Icm) | (690 V) 176 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kA |
Special Functions | No | Standards | IEC 60947-3 |
Switches Operating Mechanism | Mechanism at the End of the Switch | Terminal Type | Lug terminals |
Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | E-Number (Finland) | 3638163 |
Manufacturer ID | 1SCA115375R1001 |
Specifications may be subject to change without notice
