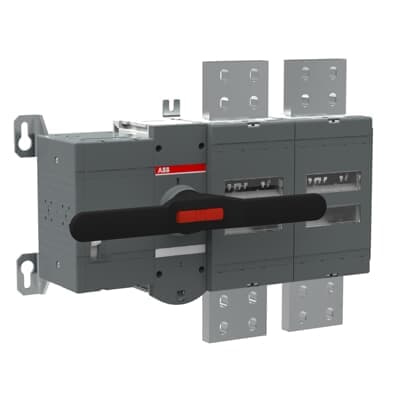

Product Model
OTM3200E2M230V-135
Selling Points
- 1High-Performance Design: Engineered for robust operation in DC-20 applications.
- 2Compact Solution: Compact design for efficient installation and space utilization.
- 3Safety Features: Equipped with comprehensive safety features, including padlockable handles.
- 4Versatile Connectivity: Supports single and double circuits with various connection types.
- 5Reliable Operation: Rated for short-time withstand currents and let-through energies.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Pollution Degree | 3 |
Product Frame Size | OTM3200-135 | Product Net Width | 546.5 mm 21.5 in |
Product Net Height | 410 mm 16.1 in | Product Net Depth / Length | 233 mm 9.2 in |
Product Net Weight | 35.1 kg 77.4 lb | Connection Configuration | Connection type 1 |
Conventional Free-air Thermal Current (Ith) | Π= 40 °C 3200 A | Conventional Thermal Current (Ithe) | Fully Enclosed 3200 A |
Degree of Protection | Front IP00 | Handle Color | Black |
Handle Type | Direct mounted pistol type handle | Lock Type | Yes |
Motor Operational Voltage | 220 ... 240 V AC | Mounting Type | Base mounting |
Number of Circuits | 1 | Number of Poles | 2P |
Operating Mode | Front Operated | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Insulation Voltage (Ui) | 1500 V | Rated Operational Current DC-20B | (1500 V DC) 3200 A |
Rated Short-time Withstand Current Low Voltage (Icw) | for 0.3 s 80 kA | Rated Voltage (Ur) | 1500 V |
Special Functions | No | Standards | IEC 60947-1, -3 |
Switches Operating Mechanism | Mechanism at the End of the Switch 02 (Left Side) | Terminal Type | Lug terminals |
Terminal Width | 100 mm 3.94 in | Utilization | Energy Storage System (ESS) |
Utilization Category | Connecting and disconnecting under no-load conditions - occasional actuation (DC-20B) | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Manufacturer ID | 1SCA163296R1001 |
Specifications may be subject to change without notice
