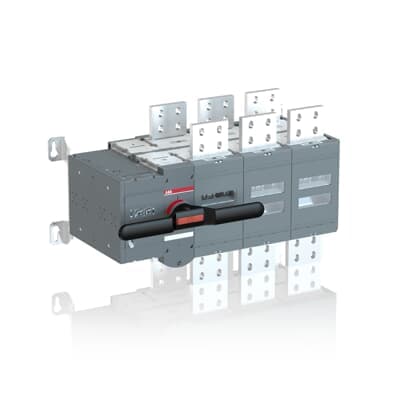

Product Model
OTM3200E3CM230C
Selling Points
- 1Electrically-operated changeover switch with motorized operation.
- 2Open I-O-II transition design for efficient power transfer.
- 33-poles (3P) configuration with a rated current of 3200A.
- 4Compatible with 220Vac-240Vac (230Vac nom.) supply voltage.
- 5Includes handle for manual operation, storage clip, and M12 x 60 bolts and nuts kit.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 691.5 mm 27.22 in | Product Net Height | 410 mm 16.14 in |
Product Net Depth / Length | 429 mm 16.89 in | Product Net Weight | 61 kg 134.48 lb |
Conventional Free-air Thermal Current (Ith) | Π= 40 °C 3200 A | Distance Between Phases | Standard |
Handle Type | Direct mounted handle | Motor Operational Voltage | 220 ... 240 V AC |
Mounting Type | Base mounting | Number of Poles | 3P |
Operating Mode | Front operated | Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
Power Loss | at Rated Operating Conditions per Pole 95 W | Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 3200 A (500 V) 3200 A |
Rated Operational Voltage | Main Circuit 1000 V | Switches Operating Mechanism | Mechanism at the End of the Switch |
Terminal Type | Screw Terminals | Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
Transition Type | Open | Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Manufacturer ID | 1SCA129240R1001 |
Specifications may be subject to change without notice
