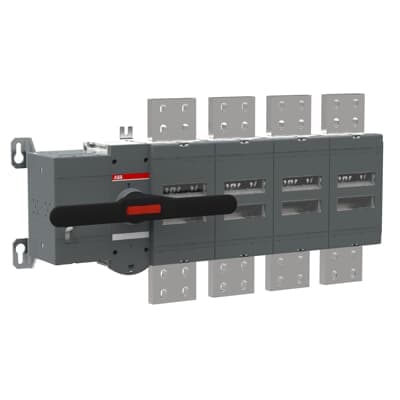

Product Model
OTM4000E4M230C
Selling Points
- 1High operational current rating: 400 A at 380-415 V, 500 V, and 690 V.
- 2Compact dimensions: 367 mm width, 185 mm height, and 235 mm depth.
- 3Enhanced safety features: Rated insulation voltage of 1000 V and impulse withstand voltage of 12 kV.
- 4Versatile operation: Front-operated mechanism with direct mounted handle.
- 5Reliable performance: Conventional thermal current of 400 A in fully enclosed conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Pollution Degree | 3 |
Product Net Width | 826.5 mm | Product Net Height | 410 mm |
Product Net Depth / Length | 165 mm | Product Net Weight | 50.95 kg |
Conventional Free-air Thermal Current (Ith) | Π= 40 °C 3800 A | Degree of Protection | Front IP00 |
Distance Between Phases | Standard | Fourth Pole Position | Right Side |
Fourth Pole Type | Switched - Simultaneous Function | Handle Color | Black |
Handle Type | Direct mounted handle | Lock Type | Yes |
Mechanical Durability | 5000 | Motor Operational Voltage | 220 ... 240 V AC |
Mounting Type | Base mounting | Number of Poles | 4 |
Operating Mode | Front operated | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out | Power Loss | at Rated Operating Conditions per Pole 120 W |
Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 3800 A | Rated Operational Current AC-22B (Ie) | (380 ... 415 V) 3800 A |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 176 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 80 kA | Special Functions | No |
Standards | IEC 60947-3 | Switches Operating Mechanism | Mechanism at the End of the Switch |
Terminal Type | Lug terminals | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
eClass | V11.1 : 27371403 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA129197R1001 |
Specifications may be subject to change without notice
