Product Model

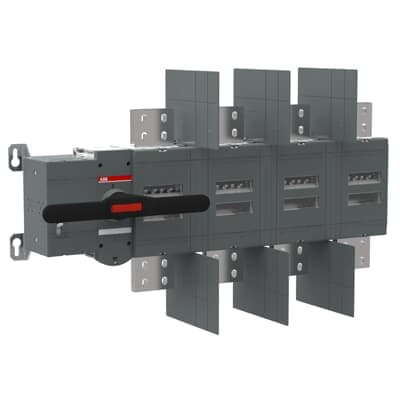

OTM4000E4W8M230C
Selling Points
- 1High-performance motorized switch-disconnector with robust design.
- 2Advanced insulation for enhanced safety and reliability.
- 3Rated for 1000 V and 400 A operational current.
- 4Mechanism at the end of the switch for easy operation.
- 5Compliant with EU Directive 2002/95/EC and RoHS standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Pollution Degree | 3 |
Product Net Width | 961.5 mm | Product Net Height | 410 mm |
Product Net Depth / Length | 165.5 mm | Product Net Weight | 52.885 kg |
Conventional Free-air Thermal Current (Ith) | Π= 40 °C 4000 A | Degree of Protection | Front IP00 |
Distance Between Phases | Phase distance 185 mm | Fourth Pole Position | Right Side |
Fourth Pole Type | Switched - Simultaneous Function | Handle Color | Black |
Handle Type | Direct mounted handle | Lock Type | Yes |
Mechanical Durability | 5000 | Motor Operational Voltage | 220 ... 240 V AC |
Mounting Type | Base mounting | Number of Poles | 4P |
Operating Mode | Front operated | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out | Power Loss | at Rated Operating Conditions per Pole 120 W |
Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 4000 A | Rated Operational Current AC-22B (Ie) | (380 ... 415 V) 4000 A |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 176 kA |
Special Functions | Wide phase distance 185 | Standards | IEC 60947-3 |
Switches Operating Mechanism | Mechanism at the End of the Switch | Terminal Type | Lug terminals |
Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Manufacturer ID | 1SCA129207R1001 |
Specifications may be subject to change without notice
