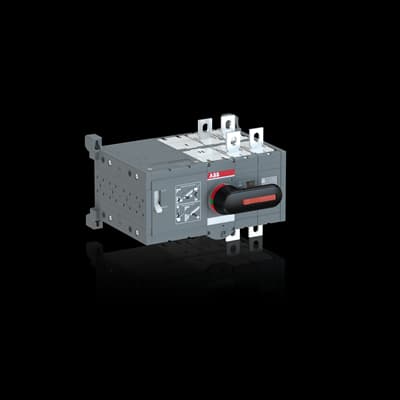

ABB OTM400E2CM230V

Selling Points

  • 1High Performance: Efficiently handles up to 400A with a rated power of 275kVA.
  • 2Reliable Operation: Motorized switching ensures precise and consistent operation.
  • 3Durable Design: Built with a frame current rating of 400 AF and insulated up to 1000V.
  • 4Versatile Connectivity: Includes drilled flat connection pads and M10 x 30 bolts and nuts kit.
  • 5Comprehensive Accessories: Comes with a handle for manual operation, storage clip for the handle and spare fuses, and male connectors for the control circuit.
Product Details
OTM400E2CM230V
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Degree of Protection
Front IP20
Pollution Degree
3
Product Net Width
280 mm 11.02 in
Product Net Height
185 mm 7.28 in
Product Net Depth / Length
235 mm 9.25 in
Product Net Weight
5.2 kg 11.46 lb
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 400 A
Conventional Thermal Current (Ithe)
Fully Enclosed 400 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Direct mounted handle
Motor Operational Voltage
220 ... 240 V AC
Mounting Type
Base mounting
Number of Poles
2P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 10 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 15 kiloampere rms
Switches Operating Mechanism
Mechanism at the End of the Switch
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 30 ... 44 N·m
Transition Type
Open
Tightening Torque
acc. IEC 60947-1 30 ... 44 N·m
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Manufacturer ID
1SCA121226R1001
