Product Model

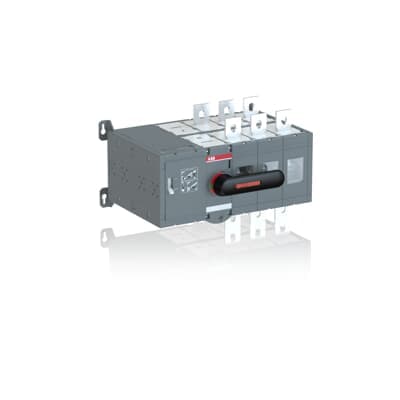

OTM630E3CM110V
Selling Points
- 1High operational currents up to 630 A for efficient power management.
- 2Robust design with a direct-mounted handle for manual operation and bolt kit with nut and washers.
- 3Easy installation with a storage clip for the handle and spare fuses included.
- 4Compliance with EU Directive 2011/65/EU and Amendment 2015/863 for environmental sustainability.
- 5CE certification and REACH declaration for safety and regulatory compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP20 | Environmental Information | 1SCC303036D0202 |
Pollution Degree | 3 | Product Net Width | 411 mm 16.18 in |
Product Net Height | 250 mm 9.84 in | Product Net Depth / Length | 299 mm 11.77 in |
Product Net Weight | 22 kg 48.5 lb | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 630 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 630 A | Degree of Protection | Front IP20 |
Distance Between Phases | Standard | Handle Color | Black |
Handle Type | Direct mounted handle | Motor Operational Voltage | 110 ... 125 V AC/DC |
Mounting Type | Base mounting | Number of Poles | 3P |
Operating Mode | Front operated | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 25 W |
Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | 1000 V |
Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A |
Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A | Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 630 A |
Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 630 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 355 kW (500 V) 400 kW (690 V) 630 kW |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kiloampere rms |
Switches Operating Mechanism | Mechanism at the End of the Switch | Terminal Type | Screw Terminals |
Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m | Transition Type | Open |
Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
UNSPSC | 39122214 | IDEA Granular Category Code (IGCC) | 5208 >> Controller switch |
eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
E-Number (Finland) | 3641760 | Manufacturer ID | 1SCA022873R1050 |
Specifications may be subject to change without notice
