ABBDual power conversion switch
Product Model

OTM63F3C20D400C

Manufacturer

ABB

Category

Dual power conversion switch

Product ID

73996

In Stock
Last updated: 2025/4/19
View Specifications

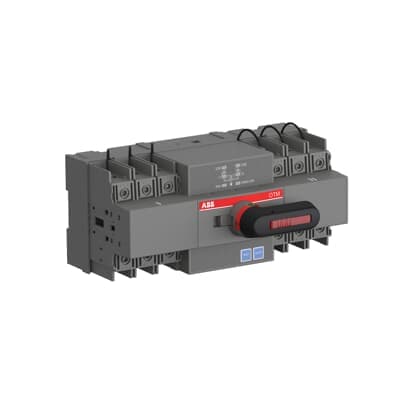

ABB OTM63F3C20D400C

Selling Points

  • 1High reliability and safety with IP20 enclosure.
  • 2Motorized operation for easy switching.
  • 3Suitable for applications up to 63A and 600VAC.
  • 4Compact design with dimensions 131 mm depth and 103 mm height.
  • 5Meets IEC 60947-3 standards for performance and reliability.
Product Details
OTM63F3C20D400C
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Degree of Protection
Front IP20
Pollution Degree
3
Product Net Width
233 mm 9.17 in
Product Net Height
103 mm 4.06 in
Product Net Depth / Length
131 mm 5.16 in
Product Net Weight
1.75 kg 3.86 lb
Controller Type
20D
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 63 A
Degree of Protection
Front IP20
Fourth Pole Type
Switched - Simultaneous Function
Handle Type
Direct mounted handle
Motor Operational Voltage
380…415 V AC
Mounting Type
Base Mounting Or DIN-rail mounting
Number of Poles
3
Pollution Degree
3
Position of Line Terminals
Supplies on Top - Load on Bottom
Power Loss
at Rated Operating Conditions per Pole 2.8 W
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
800 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 63 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 63 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 63 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 63 A
Rated Operational Current AC-32B (Ie)
(380 ... 415 V) 63 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 63 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 30 kW
Rated Operational Voltage
Main Circuit 380…415 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 2.5 kiloampere rms
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 6 N·m
Transition Type
Open
Tightening Torque
acc. IEC 60947-1 6 N·m
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122214
IDEA Granular Category Code (IGCC)
5208 >> Controller switch
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3640445
Manufacturer ID
1SCA151423R1001

Specifications may be subject to change without notice
