Product Model

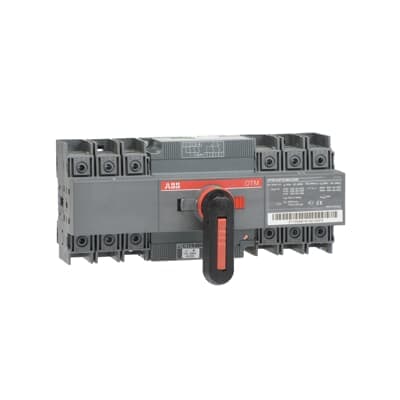

OTM63F3CMA230V
Selling Points
- 163A for robust power handling.
- 2Ensures safe and efficient power transfer.
- 3Provides reliable protection against environmental factors.
- 4Easy and precise switching with minimal manual effort.
- 5Compatible with 110 to 240 VAC for broad application use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP20 | Pollution Degree | 3 |
Product Net Width | 230 mm 9.06 in | Product Net Height | 100 mm 3.94 in |
Product Net Depth / Length | 116 mm 4.57 in | Product Net Weight | 1.64 kg 3.62 lb |
Cable Cross-Section | 10 ... 70 mm² | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 63 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 63 A | Degree of Protection | Front IP20 |
Distance Between Phases | Standard | Handle Color | Black |
Handle Type | Direct mounted handle | Motor Operational Voltage | 110 ... 240 V AC/DC |
Mounting Type | Base mounting | Number of Poles | 3P |
Operating Mode | Front operated | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 2.8 W |
Rated Impulse Withstand Voltage (Uimp) | 8 kV | Rated Insulation Voltage (Ui) | 800 V |
Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 63 A (500 V) 63 A (690 V) 63 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 63 A (500 V) 63 A (690 V) 63 A |
Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 63 A (500 V) 60 A (690 V) 40 A | Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 63 A |
Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 63 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 30 kW (500 V) 37 kW (690 V) 37 kW |
Rated Operational Voltage | Main Circuit 800 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
Switches Operating Mechanism | Mechanism at the End of the Switch | Terminal Type | Screw Terminals |
Tightening Torque | acc. IEC 60947-1 6 N·m | Transition Type | Open |
Tightening Torque | acc. IEC 60947-1 6 N·m | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
UNSPSC | 39122214 | IDEA Granular Category Code (IGCC) | 5208 >> Controller switch |
eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
E-Number (Finland) | 3601228 | Manufacturer ID | 1SCA120095R1001 |
