Product Model

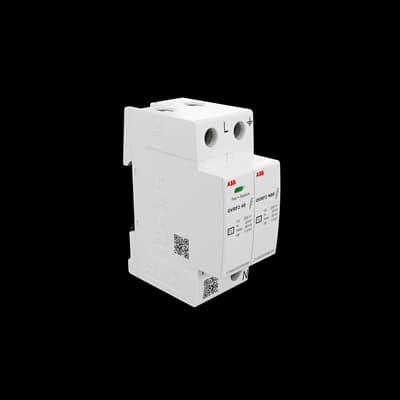

OVRF2 1N 40-350
Selling Points
- 1Compliant with IEC 61643-11 standards for reliable surge protection.
- 2DIN rail mounting for easy installation in compact spaces.
- 3High short-circuit breaking capacity of 100 kA for robust performance.
- 4Impulse current protection up to 40 kA for safeguarding against transient overvoltages.
- 5IP20 degree of protection for enhanced environmental resilience.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Power Loss | 0.063 W | Number of Batteries | 0 |
Product Net Width | 85 mm | Product Net Height | 66.2 mm |
Product Net Depth / Length | 35.6 mm | Product Net Weight | 0.153 kg |
Dimension Diagram | 9AKK108469A0713 | ETIM 8 | EC000941 - Surge protection device for power supply systems |
ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 8536909000 |
Object Classification Code | F | Manufacturer ID | 2TAM502100R4500 |
Specifications may be subject to change without notice
