Product Model

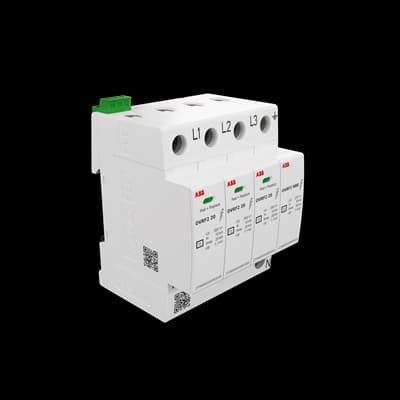

OVRF2 3N 20-350 TS
Selling Points
- 1Compliant with IEC 61643-11 standards for reliable protection against lightning currents and surge voltages.
- 2Designed for low-voltage distribution systems including TT and TN-S networks.
- 3Nominal discharge current of 5 kA with a maximum of 20 kA and total discharge of 80 kA.
- 4Integrated auxiliary contacts for enhanced system protection and monitoring.
- 5Compact design with DIN rail mounting for easy installation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Power Loss | 0.063 W | Number of Batteries | 0 |
Product Net Width | 90.8 mm | Product Net Height | 66.2 mm |
Product Net Depth / Length | 71.2 mm | Product Net Weight | 0.315 kg |
Dimension Diagram | 9AKK108469A0713 | ETIM 8 | EC000941 - Surge protection device for power supply systems |
ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 8536909000 |
Object Classification Code | F | Manufacturer ID | 2TAM504100R3501 |
Specifications may be subject to change without notice
