Product Model

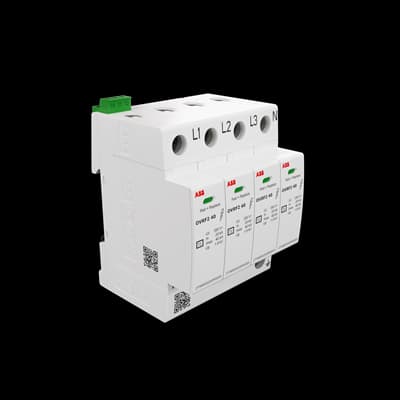

OVRF2 4L 40-350 TS
Selling Points
- 1Comprehensive Protection: Safeguards against transient overvoltages and lightning strikes.
- 2IEC 61643-11 Compliant: Meets international standards for surge protection.
- 3High Discharge Current: Handles up to 120 kA of impulse current.
- 4Easy Installation: Plug-in version for simple integration into your electrical system.
- 5End-of-Life Indicator: Features a mechanical indicator that changes from green to red when the device needs replacement.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Power Loss | 0.063 W | Number of Batteries | 0 |
Product Net Width | 90.8 mm | Product Net Height | 66.2 mm |
Product Net Depth / Length | 71.2 mm | Product Net Weight | 0.332 kg |
Dimension Diagram | 9AKK108469A0713 | ETIM 8 | EC000941 - Surge protection device for power supply systems |
ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 8536909000 |
Object Classification Code | F | Manufacturer ID | 2TAM504000R4501 |
Specifications may be subject to change without notice
