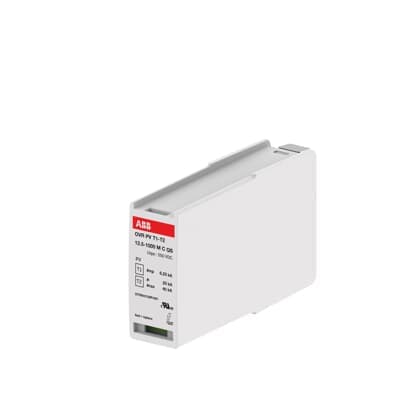

ABB OVR PV T1-T2 12.5-1000 M C QS Surge Protector

Selling Points

1Comprehensive Protection: Designed to protect systems against transient overvoltages and lightning currents.
2High Voltage Rating: Compatible with 1000 V DC and 1100 V AC, ensuring robust protection.
3Compact Design: Plug-in version with a compact size of 24 mm x 45 mm x 74 mm, ideal for DIN rail mounting.
4Advanced Technology: Equipped with QuickSafe technology for self-protection up to higher current values.
5Certified Standards: Meets IEC 61643-11, EN 50539-11, and UL 1449 4th edition standards for reliability and safety.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Standards	IEC 61 643-11 / EN 50539-11 / UL 1449 4th ed	Suitable For	To protect the systems against the transient overvoltage (lightning)
Rated Voltage (Ur)	1000 V DC	Voltage Rating DC	1000 V
Voltage Protection Level ( Up)	3.8 kV	Maximum Power Point (MPP) Voltage	1000 V
Rated Service Short-Circuit Breaking Capacity (Ics)	11 kA	Discharge Current	Nominal (8 / 20 Âµs) 20 kA I (max, 8 / 20 Âµs) 40 kA I (total, 10 / 350 Âµs) 12.5 kA
Arrester Class	I II	Number of Protected Poles	2
Number of Conductors	2	Transmission Standard	Optic
Version	Plug-in	Mounting Type	DIN-Rail
Product Type	QS	Options Provided	Solar
Preventive Maintenance Feature	No	Status Indicator	Yes
Number of Batteries	0	Fuse Size	3 modular spacing
Degree of Protection	IP20	Product Net Width	24 mm
Product Net Height	45 mm	Product Net Depth / Length	74 mm
Product Net Weight	0.071 kg	ETIM 8	EC000941 - Surge protection device for power supply systems
ETIM 9	EC000941 - Surge protection device for power supply systems	WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B	Business To Business	CN8	8535 40 00
eClass	V11.0 : 27130805	Object Classification Code	141DCC
Manufacturer ID	2CTB812122R1001

Specifications may be subject to change without notice
