Product Model

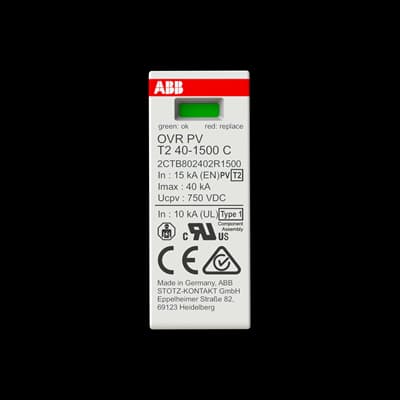

OVR PV T2 40-1500 C
Selling Points
- 1Advanced Surge Protection: Safeguards against transient overvoltages and lightning strikes with a maximum discharge current of 40 kA.
- 2Wide Operating Range: Operates effectively in temperatures from -40°C to +80°C, ensuring reliability in various environmental conditions.
- 3Compact Design: Compact dimensions (90 x 54 x 73 mm) make it easy to install in string/combiner boxes or PV inverters.
- 4End-of-Life Indicator: Features a green/red indicator for easy monitoring of the device's functional status, ensuring timely replacements.
- 5Compliance with Standards: Meets IEC 61643-31 and UL 1449 5th edition standards, ensuring high safety and performance in photovoltaic applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC 61643-31 UL14419 Ed5 | Suitable For | To protect the systems against the transient overvoltage (lightning) |
Rated Voltage (Ur) | 1500 V DC | Voltage Rating DC | 1500 V |
Voltage Protection Level ( Up) | 5 kV | Maximum Continuous Operating Voltage (Uc) | (L-PE) 1500 V (L-L) 1500 V (L-N) 0 V (N-PE) 0 V |
Maximum Power Point (MPP) Voltage | 1500 V | Rated Service Short-Circuit Breaking Capacity (Ics) | 10 kA |
Discharge Current | Nominal (8 / 20 µs) 20 kA I (max, 8 / 20 µs) 40 kA | Short Circuit Withstand Icc | 10 kA |
Arrester Class | II | Number of Protected Poles | 2 |
Number of Poles | 3 | Transmission Standard | Optic |
Version | Plug-in | Mounting Type | DIN-Rail |
Options Provided | Solar | Preventive Maintenance Feature | No |
Status Indicator | Yes | Fuse Size | 1 modular spacing |
Degree of Protection | IP20 | Maximum Operating Altitude Permissible | Without Derating 2000 m |
Maximum Continuous Operating Voltage UL/CSA (MCOV) | (L-PE) 1500 V (L-L) 1500 V (L-N) 0 V (N-PE) 0 V | Voltage Protection Rating UL/CSA (VPR) | Lpe 4 kV Ll 4 kV |
Product Net Width | 17.5 mm | Product Net Height | 57 mm |
Product Net Depth / Length | 47 mm | Product Net Weight | 0.063 kg |
ETIM 8 | EC000941 - Surge protection device for power supply systems | ETIM 9 | EC000941 - Surge protection device for power supply systems |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
CN8 | 85363090 | eClass | V11.0 : 27130805 |
Object Classification Code | 141DCC | Manufacturer ID | 2CTB802402R1500 |
Specifications may be subject to change without notice
