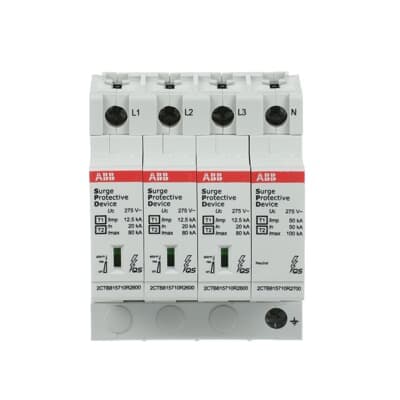

Product Model
OVR T1-T2 3N 12.5-275s P QS
Selling Points
- 1Comprehensive Protection: Protects against lightning currents and surge voltages according to IEC 61643-11 standards.
- 2High Discharge Current: Nominal 20 kA, maximum 80 kA, total 100 kA discharge current for effective surge absorption.
- 3Durable Design: Compatible with the System pro M compact series, ensuring seamless integration and coordination.
- 4Preventive Maintenance: Features a status indicator and preventive maintenance capability to extend the lifespan of the device.
- 5Versatile Installation: Suitable for both industry and commercial building applications, with options for auxiliary contact and reserve varistor for added protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC 61643-11 / EN 61643-11 | Type of Low Voltage Distribution System | TT TN-S |
Suitable For | To protect the systems against the transient overvoltage (lightning) | Nominal AC Voltage of the System (Uo) | 230 / 400 V |
Voltage Protection Level ( Up) | (L-N) 1.4 kV (N-PE) 1.4 kV (L-PE) 1.5 kV | Maximum Continuous Operating Voltage (Uc) | (L-PE) 275 V (L-L) 440 V (L-N) 275 V (N-PE) 255 V |
Temporary Overvoltage Test Value (UT) | (L-N) 337 V (N-PE) 1200 V | Discharge Current | Nominal 20 kA Maximum 80 kA Total 100 kA |
Impulse Current | I (imp, 10 / 350 µs) 12.5 kA I (total, 10 / 350 µs) 50 kA | Lightning Impulse Current | 12,5 |
Short Circuit Withstand Icc | 100 kA | Follow Current Extinction Capacity If (I fi) | (L-N) - kA (N-PE) 0.1 kA |
Power Loss | 63 mW | Short-Circuit Protective Devices | Curve B Breakers ⤠125 A Curve C Breakers ⤠125 A gL Type Fuses ⤠160 A gG Type Fuses ⤠160 A |
Arrester Class | I II | Number of Protected Poles | 4 |
Number of Poles | 4 | Position of Neutral Terminals | Right |
Version | Plug-in | Mounting Type | DIN-Rail |
Product Type | QS | Options Provided | Industry, commercial building |
Preventive Maintenance Feature | Yes | Status Indicator | Yes |
Fuse Size | 4 modular spacing | Degree of Protection | IP20 |
Maximum Operating Altitude Permissible | Without Derating 5000 | Width in Number of Modular Spacings | 4 |
Product Net Width | 71.2 mm | Product Net Height | 88 mm |
Product Net Depth / Length | 76.7 mm | Product Net Weight | 0.6 kg |
ETIM 8 | EC001457 - Combined arrester for power supply systems | ETIM 9 | EC001457 - Combined arrester for power supply systems |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Business |
CN8 | 85363090 | eClass | V11.0 : 27130808 |
Object Classification Code | 141BCC | Manufacturer ID | 2CTB815710R1900 |
