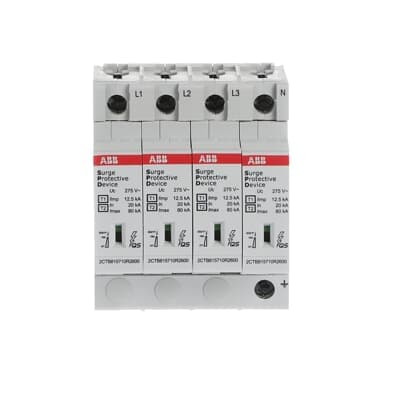

ABB OVR T1-T2 4L 12.5-275s P QS

Selling Points

  • 1Advanced Lightning Protection: Combines Type 1 and Type 2 surge protection for comprehensive protection against lightning currents.
  • 2High Impulse Current Rating: Rated for 12.5kA (10/350μs) and 80kA (8/20μs) to handle high surge currents effectively.
  • 3Easy Installation: Designed for DIN rail mounting, simplifying installation and reducing wiring time.
  • 4Mechanical Indicators: Fitted with mechanical indicators to signal the status of the device, ensuring timely maintenance.
  • 5Reliable Performance: Operates within a wide temperature range (-40°C to 80°C) and meets IP20 protection standards.
Product Details
OVR T1-T2 4L 12.5-275s P QS
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Standards
IEC 61643-11 / EN 61643-11
Type of Low Voltage Distribution System
TN-S
Suitable For
To protect the systems against the transient overvoltage (lightning)
Nominal AC Voltage of the System (Uo)
230 / 400 V
Voltage Protection Level ( Up)
(L-N) 2.8 kV (N-PE) 1.4 kV (L-PE) 1.4 kV
Maximum Continuous Operating Voltage (Uc)
(L-PE) 275 V (L-L) 440 V (L-N) 440 V (N-PE) 275 V
Temporary Overvoltage Test Value (UT)
337 V
Discharge Current
Nominal 20 kA Maximum 80 kA Total 320 kA
Impulse Current
I (imp, 10 / 350 µs) 12.5 kA I (total, 10 / 350 µs) 50 kA
Lightning Impulse Current
12,5
Short Circuit Withstand Icc
100 kA
Follow Current Extinction Capacity If (I fi)
(L-N) - kA (N-PE) - kA
Power Loss
63 mW
Short-Circuit Protective Devices
Curve B Breakers ≤ 125 A Curve C Breakers ≤ 125 A gL Type Fuses ≤ 160 A gG Type Fuses ≤ 160 A
Arrester Class
I II
Number of Protected Poles
4
Number of Poles
4
Position of Neutral Terminals
Right
Version
Plug-in
Mounting Type
DIN-Rail
Product Type
QS
Options Provided
Industry, commercial building
Preventive Maintenance Feature
Yes
Status Indicator
Yes
Fuse Size
4 modular spacing
Degree of Protection
IP20
Maximum Operating Altitude Permissible
Without Derating 5000
Width in Number of Modular Spacings
4
Product Net Width
71.2 mm
Product Net Height
88 mm
Product Net Depth / Length
76.7 mm
Product Net Weight
0.6 kg
ETIM 8
EC001457 - Combined arrester for power supply systems
ETIM 9
EC001457 - Combined arrester for power supply systems
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
CN8
85363090
eClass
V11.0 : 27130808
Object Classification Code
141BCC
Manufacturer ID
2CTB815710R2300
