Product Model

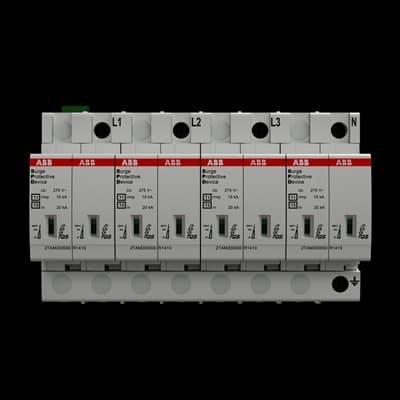

OVR T1-T2 4L 15-275s P TS QS
Selling Points
- 1Comprehensive Protection: Offers robust protection against lightning currents and surge voltages, meeting IEC 61643-11 standards.
- 2Compact Design: Compatible with the System pro M compact series, ensuring easy integration and reduced wiring time.
- 3Enhanced Safety: Features a follow current interrupting rating of 0.1 kA, providing reliable protection in case of short circuits.
- 4Versatile Options: Available with auxiliary contact (TS) for additional functionality and reserve varistor for continued protection during service life.
- 5High Performance: Capable of withstanding maximum discharge currents of up to 80 kA and total discharge currents of 100 kA.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of Batteries | 0 | Product Net Width | 0.1424 m |
Product Net Height | 0.0956 m | Product Net Depth / Length | 0.0767 m |
Product Net Weight | 1.28 kg | ETIM 8 | EC000941 - Surge protection device for power supply systems |
ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 8536909000 |
eClass | V11.0 : 27130805 | Object Classification Code | F |
Manufacturer ID | 2TAM204000R1411 |
Specifications may be subject to change without notice
