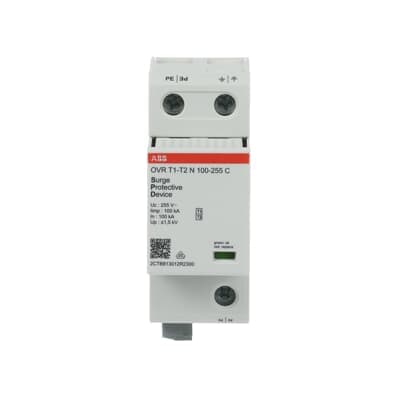

Product Model
OVR T1-T2 N 100-255 P TS
Selling Points
- 1Advanced Lightning Protection: Safeguards against transient overvoltages and lightning strikes.
- 2High Short-Circuit Current Capability: Suitable for installations with prospective short-circuit currents up to 100 kA.
- 3Robust Design: Easy-to-install plug-in cartridges ensure efficient maintenance operations.
- 4Enhanced Backup Protection: Increased rated current of backup protection reduces the risk of unwanted trips.
- 5Comprehensive Testing: Rigorous test procedures ensure reliable performance under overload conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC 61643-11 EN 61643-11 UL 1449 5thEd | Type of Low Voltage Distribution System | TT TN-S |
Nominal AC Voltage of the System (Uo) | 230 ⦠400 V | Voltage Protection Level ( Up) | (L-N) - kV (N-PE) 1.5 kV (L-PE) - kV |
Maximum Continuous Operating Voltage (Uc) | (L-PE) - V (L-N) - V (N-PE) 255 V | Temporary Overvoltage Test Value (UT) | (N-PE) 1200/200ms V |
Rated Service Short-Circuit Breaking Capacity (Ics) | 100 kA | Discharge Current | Nominal (8 / 20 µs) 25 kA I (max, 8 / 20 µs) 60 kA I (total, 10 / 350 µs) 100 kA |
Impulse Current | I (imp, 10 / 350 µs) - kA I (total, 10 / 350 µs) 100 kA | Short Circuit Withstand Icc | 100 kA |
Follow Current Extinction Capacity If (I fi) | (N-PE) 50 kA | Frequency (f) | 45â¦65 Hz |
Short-Circuit Protective Devices | gG Type Fuses 315 A | Arrester Class | I II |
Number of Protected Poles | 1 | Number of Auxiliary Contacts NC | 1 |
Number of Auxiliary Contacts NO | 1 | Number of Poles | 1 |
Number of Conductors | 2 | Version | Plug-in |
Mounting Type | DIN-Rail | Auxiliary Circuit Load | Minimum 75Vdc - 500mA Maximum 250Vac - 500mA |
Status Indicator | Yes | Number of Batteries | 0 |
Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +80 °C | Maximum Operating Altitude Permissible | Without Derating 2000 m |
Maximum Continuous Operating Voltage UL/CSA (MCOV) | (L-PE) - V (L-L) - V (L-N) - V (N-PE) 255 V | Voltage Protection Rating UL/CSA (VPR) | Lpe - V Ll - V Ln - V Npe 1500 V |
Type of Low Voltage Distribution System UL/CSA | Single Phase | Width in Number of Modular Spacings | 2 |
Product Net Width | 36 mm | Product Net Height | 99 mm |
Product Net Depth / Length | 73 mm | Product Net Weight | 0.305 kg |
ETIM 8 | EC001457 - Combined arrester for power supply systems | ETIM 9 | EC001457 - Combined arrester for power supply systems |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
CN8 | 85363090 | UNSPSC | 39-12-16-01 |
eClass | V11.0 : 27130808 | Manufacturer ID | 2CTB813011R2300 |
Specifications may be subject to change without notice
