Product Model

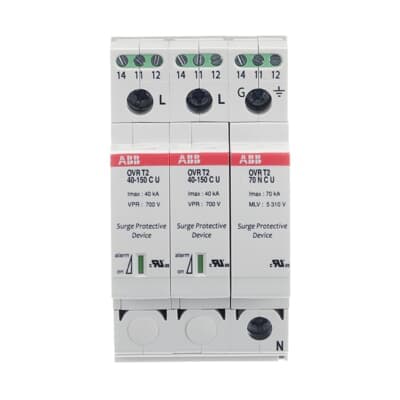

OVR T2 2N 40-150 P TS U
Selling Points
- 1High Surge Protection: Safeguards against transient overvoltages and lightning strikes.
- 2Compact Design: Net dimensions: 98.5 mm height, 64.8 mm depth, and 35.6 mm width.
- 3Reliable Performance: Meets IEC 61643-1 Ed2 and UL 1449 Ed3 standards.
- 4Versatile Application: Suitable for protecting systems with a nominal AC voltage of 120 V.
- 5Easy Installation: Plug-in version with a short-circuit withstand of 100 kA.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | UL 1449 Ed3 | Suitable For | To protect the systems against the transient overvoltage (lightning) |
Rated Voltage (Ur) | 120 V AC | Nominal AC Voltage of the System (Uo) | 120 V |
Voltage Protection Level ( Up) | 0.7 kV (L-N) 0.7 kV (N-PE) 0.7 kV | Rated Service Short-Circuit Breaking Capacity (Ics) | 100 kA |
Discharge Current | Nominal (8 / 20 µs) 20 kA I (max, 8 / 20 µs) 40 kA | Short Circuit Withstand Icc | 100 kA |
Arrester Class | II | Number of Protected Poles | 3 |
Number of Auxiliary Contacts NC | 1 | Number of Auxiliary Contacts NO | 1 |
Number of Poles | 3 | Number of Conductors | 3 |
Transmission Standard | Optic | Version | Plug-in |
Mounting Type | DIN-Rail | Options Provided | Residential, commercial building. |
Auxiliary Circuit Load | Minimum 12Vdc - 10mA Maximum 250Vac - 1A | Preventive Maintenance Feature | No |
Status Indicator | Yes | Fuse Size | 3 modular spacing |
Degree of Protection | IP20 | Maximum Operating Altitude Permissible | Without Derating 5000 |
Maximum Continuous Operating Voltage UL/CSA (MCOV) | (L-PE) 175 V (L-L) 303 V (L-N) 175 V (N-PE) 175 V | Maximum Operating Voltage UL/CSA | 175 V |
Short-Circuit Current Rating (SCCR) | 200 kA | Type of Low Voltage Distribution System UL/CSA | Split Phase |
Width in Number of Modular Spacings | 3 | Product Net Width | 53.4 mm |
Product Net Height | 98.5 mm | Product Net Depth / Length | 64.8 mm |
Product Net Weight | 0.36 kg | ETIM 8 | EC000941 - Surge protection device for power supply systems |
ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 85363090 |
UNSPSC | 39121610 | eClass | V11.0 : 27130805 |
IDEA Granular Category Code (IGCC) | 4906 >> Surge suppressers | Object Classification Code | 141DBC |
Manufacturer ID | 2CTB802344R2100 |
