Product Model

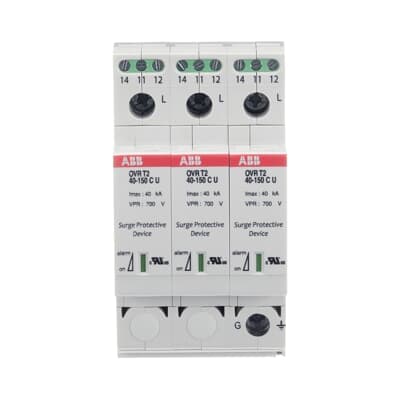

OVR T2 3L 40-150 P TS U
Selling Points
- 1High Discharge Currents: Nominal 10 kA, Maximum 40 kA for effective lightning protection.
- 2Robust Standards Compliance: Meets IEC 61643-1 Ed2 and UL 1449 Ed3 standards for reliability.
- 3Compact Design: Net dimensions of 64.8 mm depth, 53.4 mm width, and 98.5 mm height.
- 4Multiple Protection Options: Suitable for protecting systems against transient overvoltages in residential and commercial buildings.
- 5Easy Installation: Plug-in version with DIN-Rail mounting type for straightforward integration into your power supply systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | UL 1449 Ed3 | Suitable For | To protect the systems against the transient overvoltage (lightning) |
Rated Voltage (Ur) | 277 V AC | Nominal AC Voltage of the System (Uo) | 120 V |
Voltage Protection Level ( Up) | 0.8 kV (L-N) 0.8 kV | Maximum Continuous Operating Voltage (Uc) | (L-PE) 350 V |
Rated Service Short-Circuit Breaking Capacity (Ics) | 100 kA | Discharge Current | Nominal (8 / 20 µs) 20 kA I (max, 8 / 20 µs) 40 kA |
Short Circuit Withstand Icc | 100 kA | Arrester Class | II |
Number of Protected Poles | 3 | Number of Auxiliary Contacts NC | 3 |
Number of Auxiliary Contacts NO | 3 | Number of Poles | 3 |
Number of Conductors | 3 | Transmission Standard | Optic |
Version | Plug-in | Mounting Type | DIN-Rail |
Options Provided | Residential, commercial building. | Auxiliary Circuit Load | Minimum 12Vdc - 10mA Maximum 250Vac - 1A |
Preventive Maintenance Feature | No | Status Indicator | Yes |
Fuse Size | 3 modular spacing | Degree of Protection | IP20 |
Maximum Operating Altitude Permissible | Without Derating 5000 | Maximum Continuous Operating Voltage UL/CSA (MCOV) | (L-PE) 175 V (L-L) 300 V (L-N) - V (N-PE) - V |
Maximum Operating Voltage UL/CSA | 175 V | Short-Circuit Current Rating (SCCR) | 200 kA |
Type of Low Voltage Distribution System UL/CSA | Delta & HRG Wye | Width in Number of Modular Spacings | 3 |
Product Net Width | 53.4 mm | Product Net Height | 98.5 mm |
Product Net Depth / Length | 64.8 mm | Product Net Weight | 0.36 kg |
ETIM 8 | EC000941 - Surge protection device for power supply systems | ETIM 9 | EC000941 - Surge protection device for power supply systems |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Business |
CN8 | 85363090 | UNSPSC | 39121610 |
eClass | V11.0 : 27130805 | IDEA Granular Category Code (IGCC) | 4906 >> Surge suppressers |
Object Classification Code | 141DBC | Manufacturer ID | 2CTB802345R2100 |
Specifications may be subject to change without notice
