Product Model

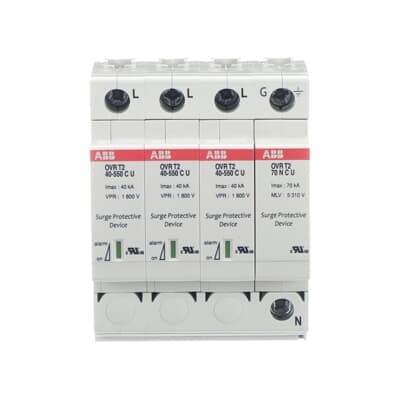

OVR T2 3N 40-550 P U
Selling Points
- 1High Surge Protection: Offers 100 kA short-circuit withstand current to protect against lightning surges.
- 2Wide Voltage Range: Compatible with 600 V AC rated voltage and up to 1.5 kV nominal AC voltage.
- 3Durable Design: Constructed with robust materials for long-lasting performance in harsh environments.
- 4Easy Installation: Plug-in version with DIN-rail mounting type for straightforward integration.
- 5Remote Monitoring: Optional remote indicator for real-time monitoring of operational state, enhancing preventive maintenance capabilities.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | UL 1449 Ed3 | Nominal AC Voltage of the System (Uo) | (L-PE) - V (L-N) 480 V (N-PE) - V (L-L) - V |
Voltage Protection Level ( Up) | (L-PE) 1.2 kV | Discharge Current | Nominal (8 / 20 µs) 20 kA I (max, 8 / 20 µs) 40 kA I (total, 8 / 20 µs) 70 kA |
Lightning Impulse Current | 10 | Short Circuit Withstand Icc | 200 kA |
Frequency (f) | 45 ... 65 Hz | Arrester Class | II |
Number of Protected Poles | 4 | Number of Poles | 4 |
Position of Neutral Terminals | Right | Version | Plug-in |
Mounting Type | DIN-Rail | Protection Type | In parallel |
Options Provided | Residential, commercial building. | Preventive Maintenance Feature | No |
Status Indicator | Yes | Fuse Size | 4 modular spacing |
Ambient Air Temperature | Operation -40 ... +80 °C Storage -40 ... +80 °C | Degree of Protection | IP20 |
Maximum Operating Altitude Permissible | Without Derating 5000 | Maximum Continuous Operating Voltage UL/CSA (MCOV) | (L-N) 550 kA |
Voltage Protection Rating UL/CSA (VPR) | 1.2 kV | Type of Low Voltage Distribution System UL/CSA | Wye |
Width in Number of Modular Spacings | 4 | Product Net Width | 71.2 mm |
Product Net Height | 88 mm | Product Net Depth / Length | 58 mm |
Product Net Weight | 0.48 kg | ETIM 8 | EC001457 - Combined arrester for power supply systems |
ETIM 9 | EC001457 - Combined arrester for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 85363090 |
UNSPSC | 39121610 | eClass | V11.0 : 27130808 |
IDEA Granular Category Code (IGCC) | 4906 >> Surge suppressers | Object Classification Code | 141DEC |
Manufacturer ID | 2CTB802346R3400 |
Specifications may be subject to change without notice
