ABBSurge protector
Product Model

OVR T2 40-275 C QS

Manufacturer

ABB

Category

Surge protector

Product ID

81231

In Stock
Last updated: 2025/4/22
View Specifications

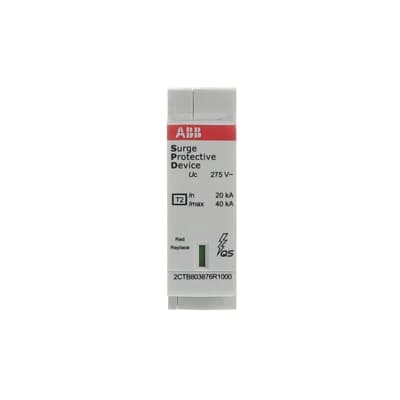

ABB OVR T2 40-275 C QS

Selling Points

  • 1100 kA for effective protection against lightning strikes and switching surges.
  • 2Constructed to withstand short circuit currents and maintain system integrity.
  • 3Ideal for DIN rail-mounted installations, saving space in compact systems.
  • 4Pluggable cartridges make replacement quick and easy, minimizing downtime.
  • 5Meets IEC 61643-11 and EN 61643-11 standards for reliable performance.
Product Details
OVR T2 40-275 C QS
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Standards
IEC 61643-11 / EN 61643-11
Type of Low Voltage Distribution System
TT TN-C TN-S
Suitable For
To protect the systems against the transient overvoltages (lightning)
Rated Voltage (Ur)
230 V AC
Nominal AC Voltage of the System (Uo)
230 / 400 V
Voltage Protection Level ( Up)
1.25 kV (L-N) 1.25 kV (N-PE) 1.25 kV
Maximum Continuous Operating Voltage (Uc)
(L-PE) 275 V
Temporary Overvoltage Test Value (UT)
337 V
Rated Service Short-Circuit Breaking Capacity (Ics)
100 kA
Discharge Current
Nominal (8 / 20 µs) 20 kA I (max, 8 / 20 µs) 40 kA
Impulse Current
I (imp, 10 / 350 µs) 2 kA
Short Circuit Withstand Icc
100 kA
Arrester Class
II
Number of Protected Poles
1
Number of Poles
1
Number of Conductors
1
Transmission Standard
Optic
Version
Plug-in
Mounting Type
DIN-Rail
Product Type
QS
Options Provided
Replacement Cartridge
Preventive Maintenance Feature
No
Status Indicator
Yes
Fuse Size
4 modular spacing
Degree of Protection
IP20
Maximum Operating Altitude Permissible
Without Derating 5000
Width in Number of Modular Spacings
1
Product Net Width
17.6 mm
Product Net Height
57 mm
Product Net Depth / Length
55.6 mm
Product Net Weight
0.075 kg
ETIM 8
EC000941 - Surge protection device for power supply systems
ETIM 9
EC000941 - Surge protection device for power supply systems
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
CN8
85363090
eClass
V11.0 : 27130805
Object Classification Code
141DCC
Manufacturer ID
2CTB803876R1000

Specifications may be subject to change without notice
