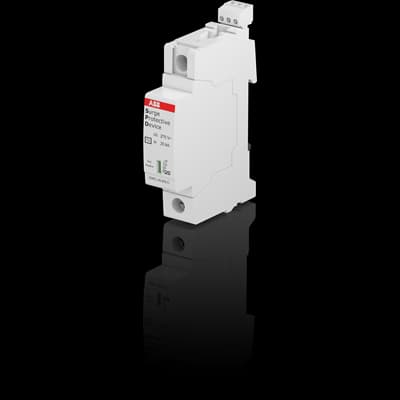

Product Model
OVR T2 40-275 P TS QS
Selling Points
- 1Comprehensive Protection: Protects low-voltage consumer systems against surge voltages, ensuring reliable operation during transient overvoltages.
- 2High Surge Current Rating: Rated for 40 kA impulse current, providing robust protection against high surge currents.
- 3DIN Rail Mounting: Designed for easy installation on DIN rail, making it a convenient solution for industrial and commercial settings.
- 4Mechanical Indicators: Fitted with mechanical indicators to monitor each arrester operation, ensuring easy maintenance and troubleshooting.
- 5Compliance with Standards: Meets IEC 61643-11 and EN 61643-11 standards, ensuring compliance with international safety regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC 61643-11 / EN 61643-11 | Type of Low Voltage Distribution System | TT TN-C TN-S |
Suitable For | To protect the systems against the transient overvoltage (lightning) | Rated Voltage (Ur) | 230 V AC |
Nominal AC Voltage of the System (Uo) | 230 / 400 V | Voltage Protection Level ( Up) | 1.25 kV (L-N) 1.25 kV (N-PE) 1.25 kV |
Maximum Continuous Operating Voltage (Uc) | (L-PE) 275 V | Temporary Overvoltage Test Value (UT) | 337 V |
Rated Service Short-Circuit Breaking Capacity (Ics) | 100 kA | Discharge Current | Nominal (8 / 20 µs) 20 kA I (max, 8 / 20 µs) 40 kA |
Impulse Current | I (imp, 10 / 350 µs) 2 kA | Short Circuit Withstand Icc | 100 kA |
Power Loss | 8 mW | Arrester Class | II |
Number of Protected Poles | 1 | Number of Auxiliary Contacts NC | 1 |
Number of Auxiliary Contacts NO | 1 | Number of Poles | 1 |
Number of Conductors | 1 | Transmission Standard | Optic |
Version | Plug-in | Mounting Type | DIN-Rail |
Product Type | QS | Options Provided | Residential, commercial building. |
Auxiliary Circuit Load | Minimum 12Vdc - 10mA Maximum 250Vac - 1A | Preventive Maintenance Feature | No |
Status Indicator | Yes | Fuse Size | 1 modular spacing |
Degree of Protection | IP20 | Maximum Operating Altitude Permissible | Without Derating 5000 |
Width in Number of Modular Spacings | 1 | Product Net Width | 17.8 mm |
Product Net Height | 95 mm | Product Net Depth / Length | 58 mm |
Product Net Weight | 0.12 kg | ETIM 8 | EC000941 - Surge protection device for power supply systems |
ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 85363090 |
eClass | V11.0 : 27130805 | Object Classification Code | 141DCC |
Manufacturer ID | 2CTB803871R1700 |
Specifications may be subject to change without notice
