Product Model

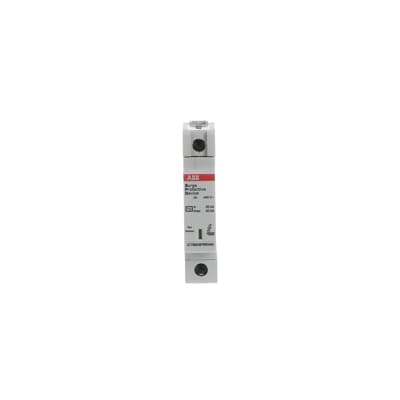

OVR T2 40-440 P QS
Selling Points
- 1Compliant with IEC 61643-11 and EN 61643-11 standards for reliable surge protection.
- 2Compatible with System pro M compact series for seamless integration.
- 3Rated for 400/690V AC and 560V DC voltage ratings.
- 4Impulse current rating of 2 kA and short-circuit breaking capacity of 20 kA.
- 5IP20 degree of protection ensures safe operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Power Loss | 0.063 W | Number of Batteries | 0 |
Product Net Width | 17.8 mm | Product Net Height | 88.0 mm |
Product Net Depth / Length | 58.0 mm | Product Net Weight | 0.12 kg |
Dimension Diagram | 2CTC800021F0102 | ETIM 8 | EC000941 - Surge protection device for power supply systems |
ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 8536909000 |
Object Classification Code | F | Manufacturer ID | 2TAM201000R4800 |
Specifications may be subject to change without notice
