Product Model

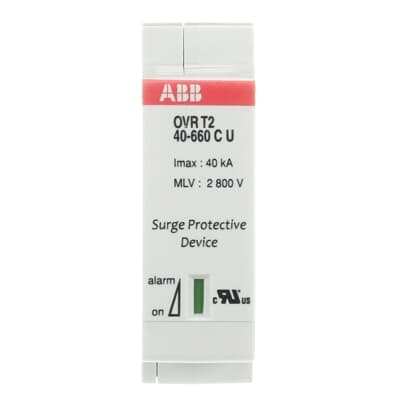

OVR T2 40-660 C U
Selling Points
- 1High Voltage Protection: Safeguards against transient overvoltages up to 1.2 kV.
- 2Reliable Discharge: Handles maximum discharge currents of up to 40 kA.
- 3Comprehensive Standards: Meets UL 1449 Ed3 standards for safety and performance.
- 4Versatile Application: Suitable for various electrical systems, including grounded Wye networks.
- 5Advanced Technology: Equipped with QuickSafe technology for enhanced protection and longevity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | UL 1449 Ed3 | Suitable For | To protect the systems against the transient overvoltage (lightning) |
Rated Voltage (Ur) | 600 V DC | Nominal AC Voltage of the System (Uo) | 600 V |
Voltage Protection Level ( Up) | 1 kV (L-N) 1 kV | Rated Service Short-Circuit Breaking Capacity (Ics) | 100 kA |
Discharge Current | Nominal (8 / 20 µs) 20 kA I (max, 8 / 20 µs) 40 kA | Short Circuit Withstand Icc | 200 kA |
Arrester Class | II | Number of Protected Poles | 1 |
Number of Poles | 1 | Number of Conductors | 1 |
Transmission Standard | Optic | Version | Plug-in |
Mounting Type | DIN-Rail | Options Provided | Replacement Cartridge |
Preventive Maintenance Feature | No | Status Indicator | Yes |
Fuse Size | 1 modular spacing | Degree of Protection | IP20 |
Maximum Operating Altitude Permissible | Without Derating 5000 | Maximum Continuous Operating Voltage UL/CSA (MCOV) | (L-PE) 680 V (L-L) 680 V (L-N) 680 V (N-PE) - V |
Maximum Operating Voltage UL/CSA | 660 V | Type of Low Voltage Distribution System UL/CSA | Single Phase |
Width in Number of Modular Spacings | 1 | Product Net Width | 17.6 mm |
Product Net Height | 57 mm | Product Net Depth / Length | 55.6 mm |
Product Net Weight | 70 g | ETIM 8 | EC000941 - Surge protection device for power supply systems |
ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 85363090 |
UNSPSC | 39121610 | eClass | V11.0 : 27130805 |
IDEA Granular Category Code (IGCC) | 4906 >> Surge suppressers | Object Classification Code | 141DFC |
Manufacturer ID | 2CTB802348R4300 |
Specifications may be subject to change without notice
