Product Model

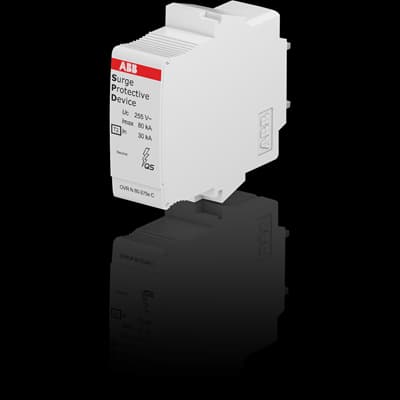

OVR T2 N 80-275s C QS
Selling Points
- 1High Voltage Protection: Safeguards against transient overvoltages up to 275V.
- 2High Surge Current: Handles up to 80kA surge current for robust protection.
- 3DIN Rail Mounting: Easy installation on DIN rail for efficient use in electrical installations.
- 4Wide Operating Temperature Range: Operates from -40°C to +80°C for reliable performance in various environments.
- 5Compliance with IEC 61643-11: Meets international standards for surge protection devices.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC 61643-11 / EN 61643-11 | Type of Low Voltage Distribution System | TT TN-S |
Suitable For | To protect the systems against the transient overvoltage (lightning) | Rated Voltage (Ur) | 230 V AC |
Nominal AC Voltage of the System (Uo) | 230 / 400 V | Voltage Protection Level ( Up) | (N-PE) 1.4 kV |
Maximum Continuous Operating Voltage (Uc) | (L-PE) 275 V | Temporary Overvoltage Test Value (UT) | 1200 V |
Rated Service Short-Circuit Breaking Capacity (Ics) | 100 kA | Discharge Current | Nominal (8 / 20 µs) 30 kA I (max, 8 / 20 µs) 80 kA |
Short Circuit Withstand Icc | 100 A | Arrester Class | II |
Number of Protected Poles | 1 | Number of Poles | 1 |
Number of Conductors | 1 | Transmission Standard | Optic |
Version | Plug-in | Mounting Type | DIN-Rail |
Product Type | QS | Options Provided | Replacement Cartridge |
Preventive Maintenance Feature | Yes | Status Indicator | No |
Fuse Size | 4 modular spacing | Degree of Protection | IP20 |
Maximum Operating Altitude Permissible | Without Derating 5000 | Width in Number of Modular Spacings | 1 |
Product Net Width | 17.6 mm | Product Net Height | 57 mm |
Product Net Depth / Length | 67 mm | Product Net Weight | 0.04 kg |
ETIM 8 | EC000941 - Surge protection device for power supply systems | ETIM 9 | EC000941 - Surge protection device for power supply systems |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Business |
CN8 | 85363090 | eClass | V11.0 : 27130805 |
Object Classification Code | 141DCC | Manufacturer ID | 2CTB815708R2800 |
Specifications may be subject to change without notice
